Lexmark CS748de - High-Voltage Power Supply (HVPS) Removal

Repair information 4-123
5026
Go Back
Previous
Next
High-voltage power supply (HVPS) removal
See “High-voltage power supply” on page 7-13 for the part number.
1. Remove the left cover. See “Left cover removal” on page 4-31.

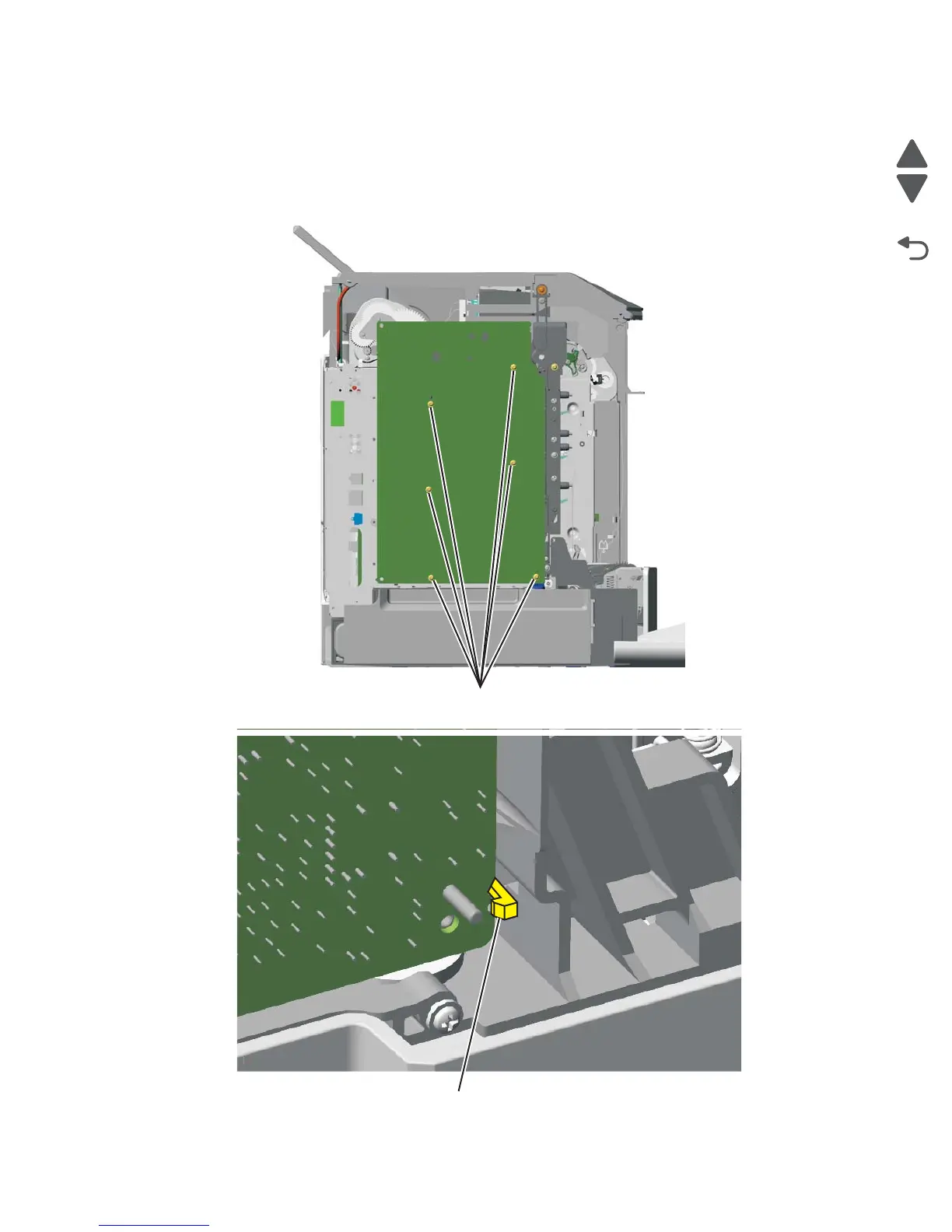

2. Remove the six mounting screws (A).
3. Release the locking tab (B) from the front, lower corner of the HVPS.
A
B
