Left bell crank assembly removal
See “Left bellcrank assembly, with spring” on page 7-7 for the part number.
1. Remove the left cover. See “Left cover removal” on page 4-31.

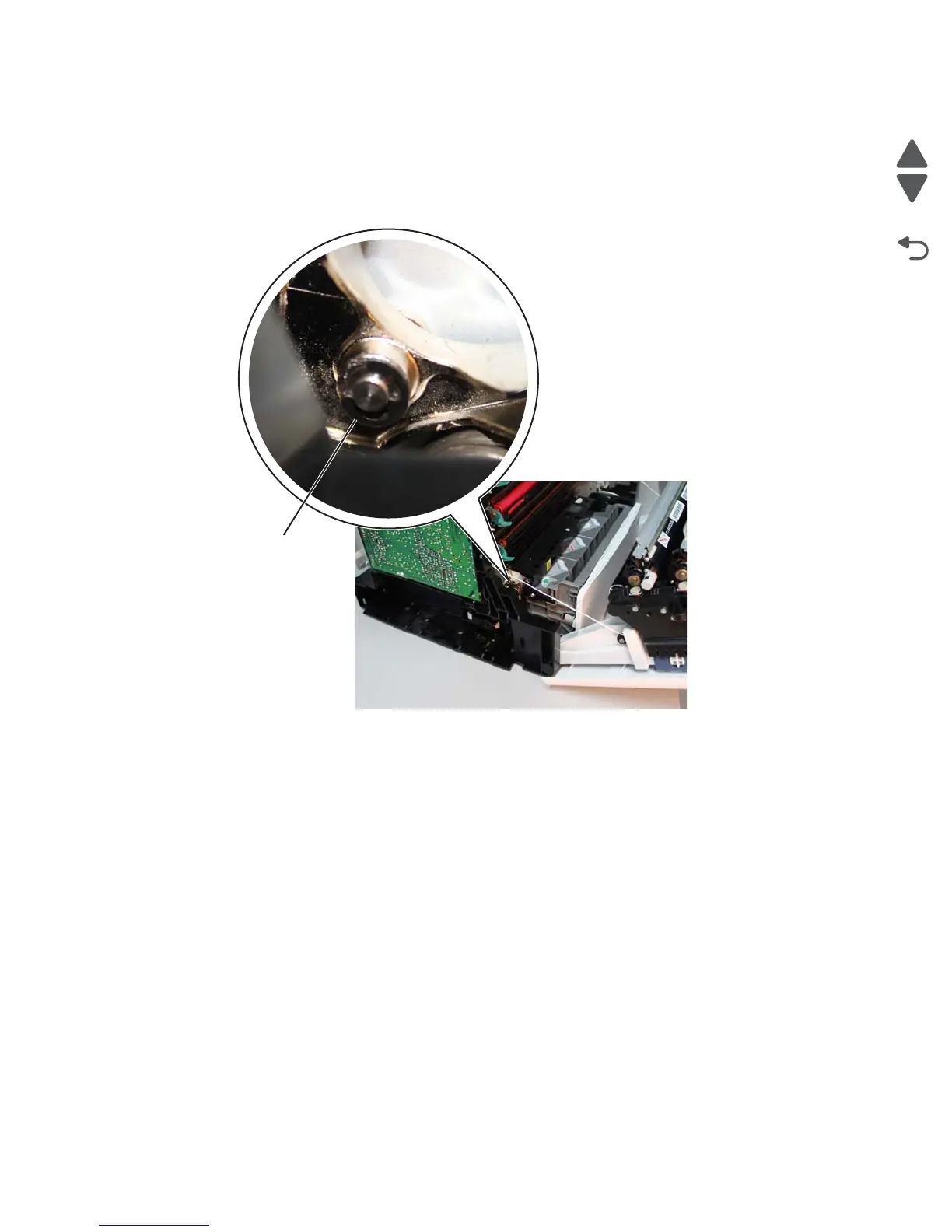

2. Remove the C-clip (A).
3. Remove the left bell crank assembly.
A
