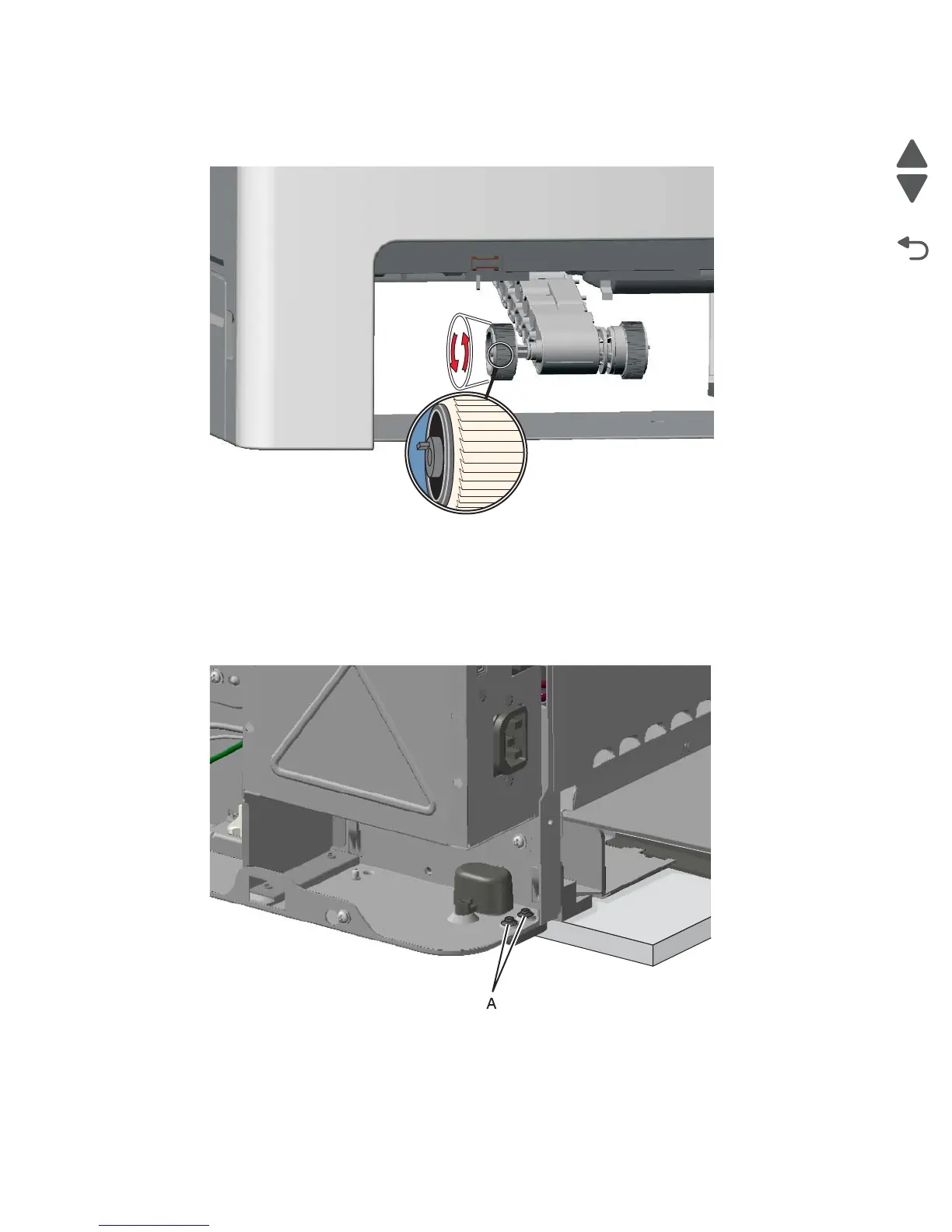

Installation notes: Install the new rubber tires with the surface texture turning in the direction as shown.
Note: Feel the rubber surface to verify it turns properly in the direction shown.
Printer pad removal
1. Slide the corner of the printer containing the damaged pad over the corner of the table.
2. Remove the side cover that corresponds to the damaged pad so you can see if the pad fully seats in the
installation holes.
3. Pull the pad tabs (A) from the bottom of the printer.
Installation note: Verify that the pad fully seats in the installation holes.
