Repair information 4-141
5026

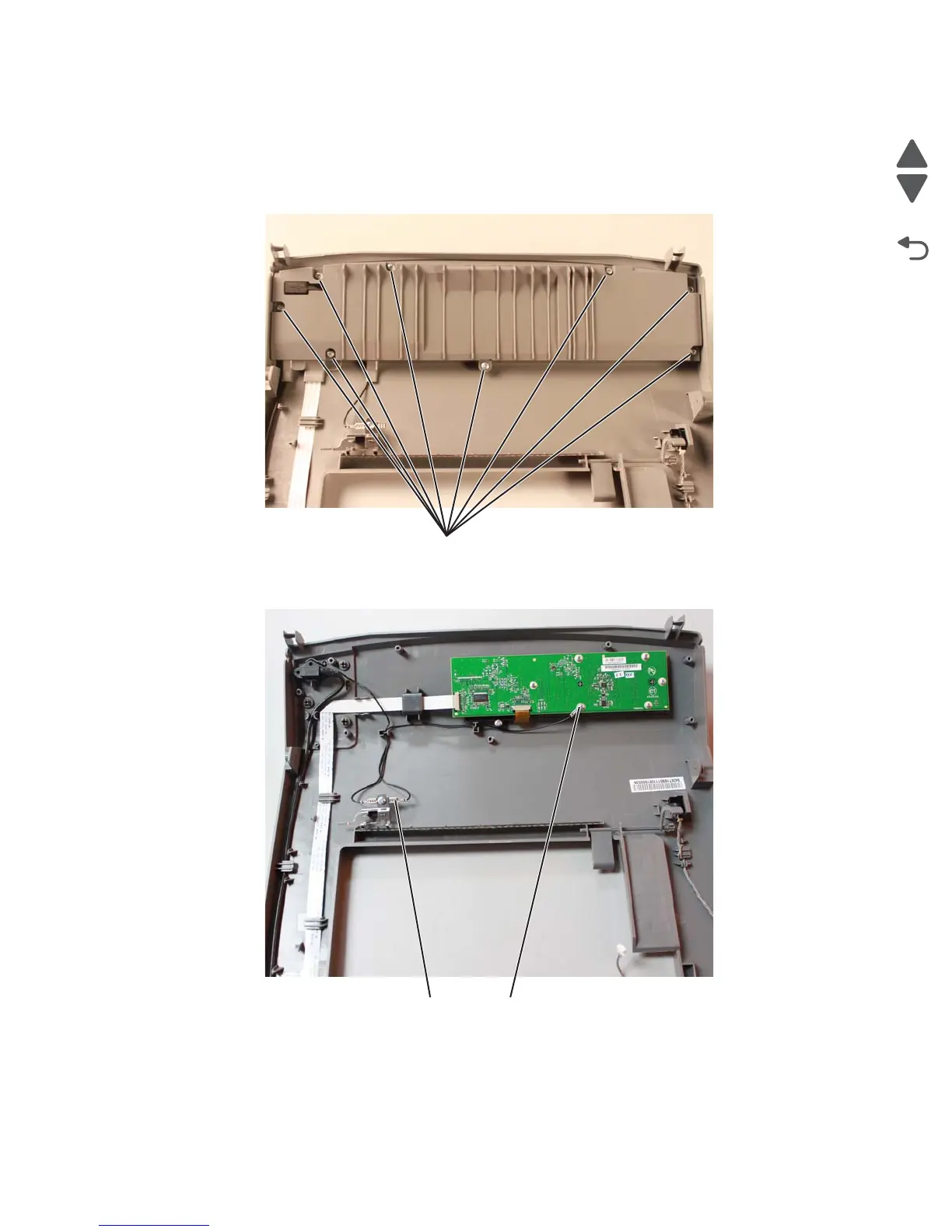

Operator panel ground cable removal
1. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-54.
2. Turn the top access cover assembly over.
3. Remove the eight screws (A) securing the position guide cover.
4. Disconnect the operator panel ground cable from the operator panel ground pin (B).
5. Remove the screw (C) securing the operator panel ground cable to the operator panel card.
6. Remove the operator panel ground cable from its retainers.
Installation note: Pay attention to the routing of the ground cable.
