Repair information 4-183
5026
Go Back
Previous
Next

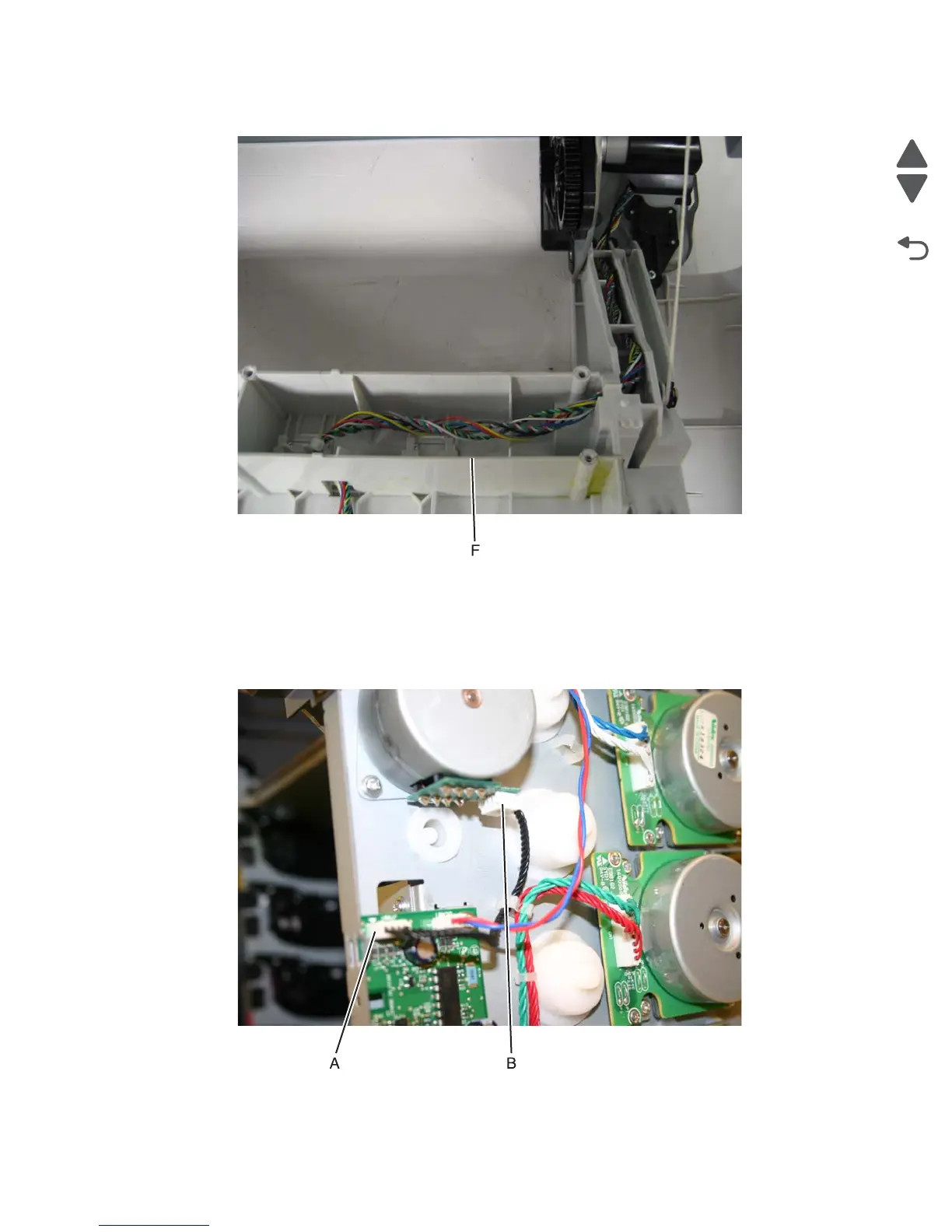

8. Remove the cable through the cable channel (F).
Transport motor cable removal
1. Remove the right cover. See “Right cover removal” on page 4-51.
2. Disconnect the cable from the transport motor drive (A).
3. Disconnect the cable from the transport motor (B).
4. Remove the cable.
