Operator panel bezel removal
See operator panel bezel on page 7-3 for the part number.
1. Open the front cover.

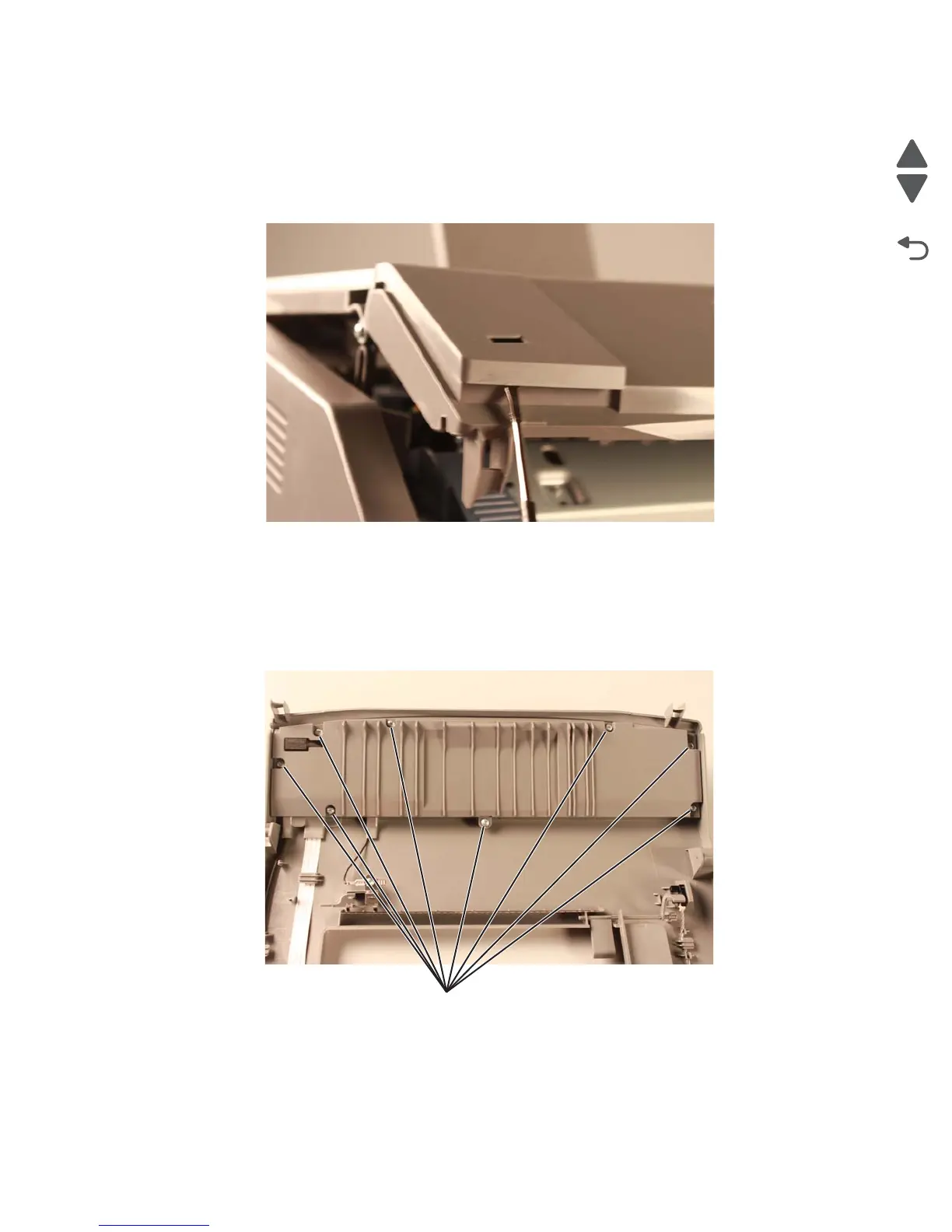

2. Pry the bezel using a flat-head screw driver to remove.
Operator panel buttons removal (C746)
1. Remove the top access door cover assembly. See “Top access cover assembly removal” on
page 4-54.
2. Turn the top access cover assembly over.
3. Remove the eight screws (A) securing the position guide cover.
A
