Repair information 4-135
5026
Go Back
Previous
Next

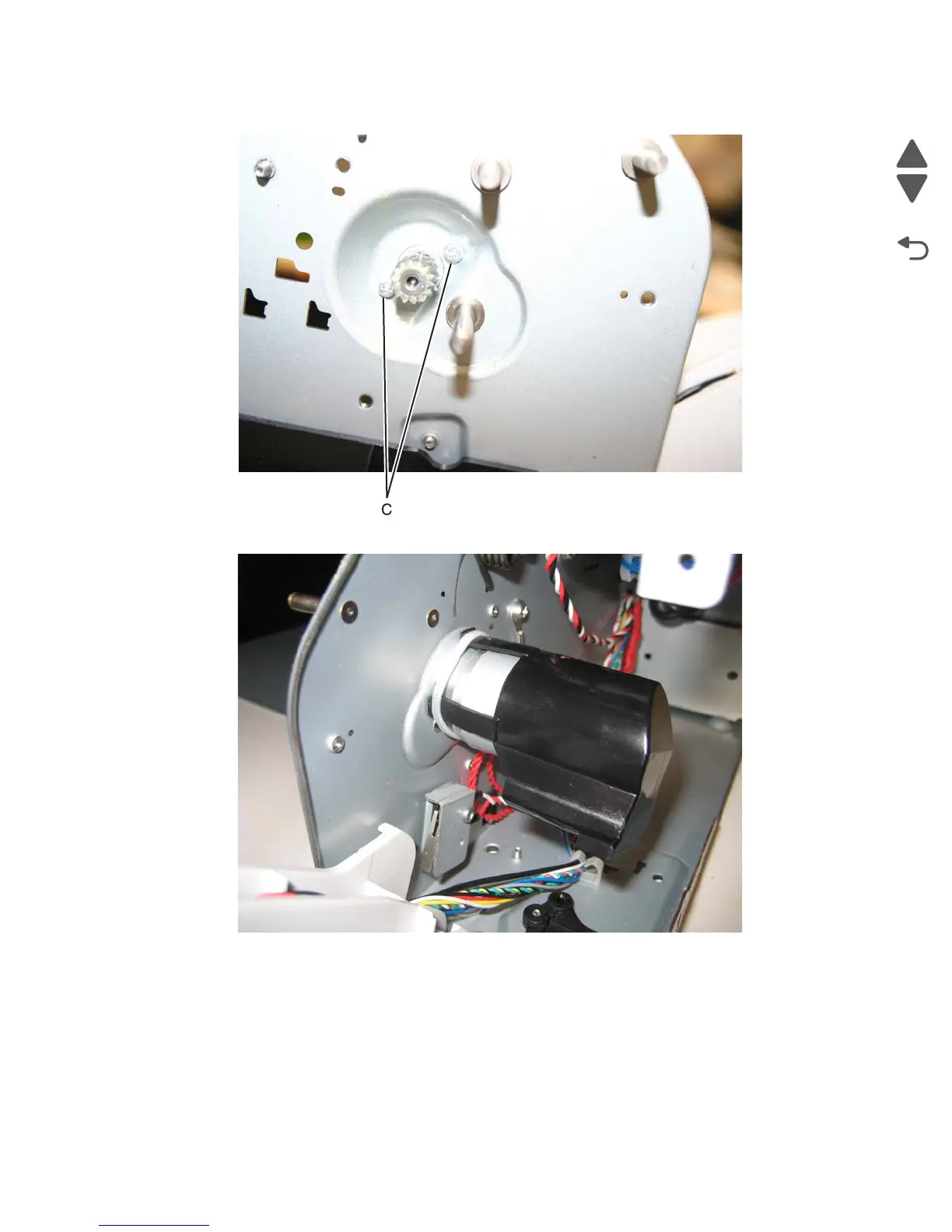

4. Replace the screws (C).
5. Slide the housing onto the motor, making sure the four tabs of the housing slide under the cable tie.
6. Replace the multipurpose feeder/duplex gear and housing assembly.
