Lexmark CS748de - Page 344

4-92 Service Manual
5026
Go Back
Previous
Next

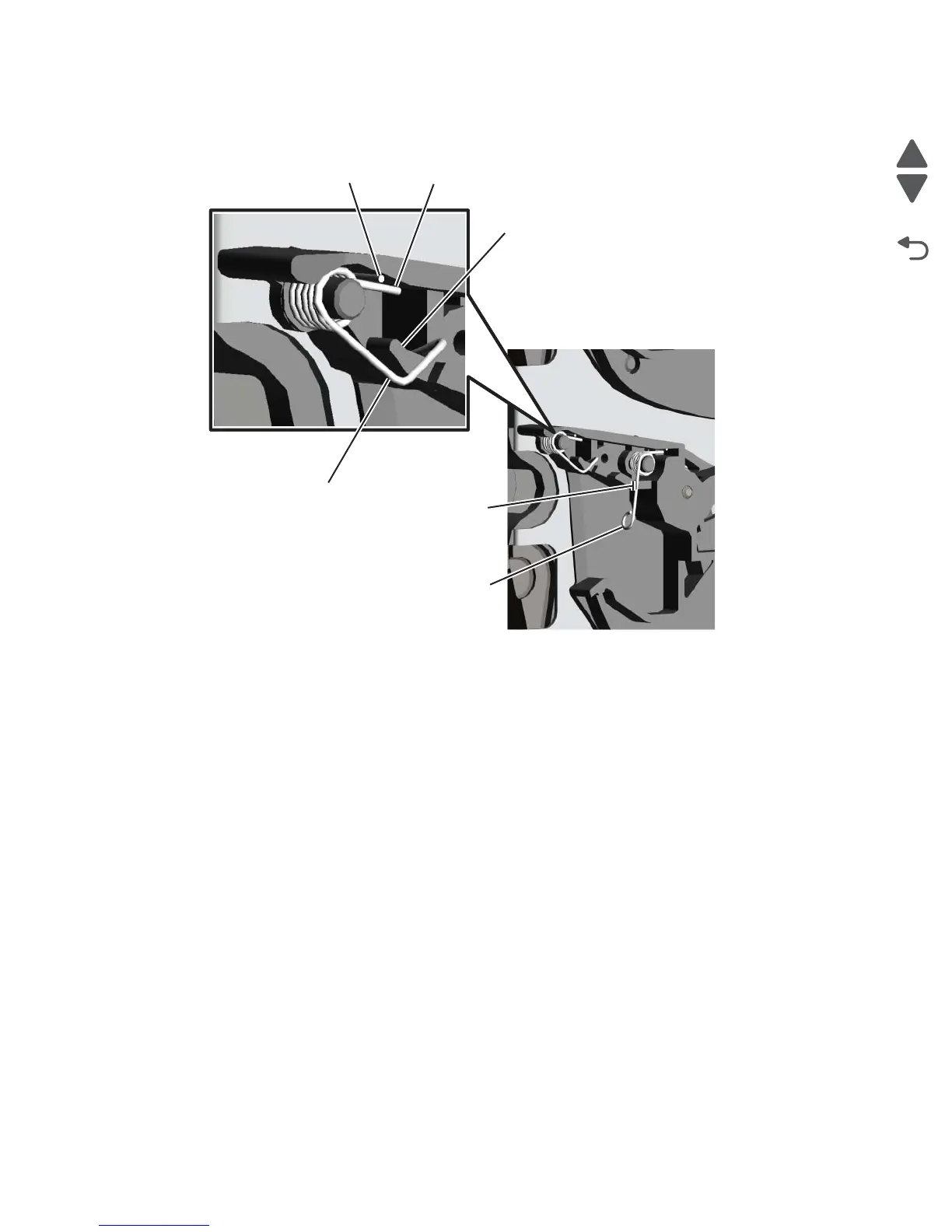

Installation notes: When installing, make sure the top half (E) of the spring is under the straight spring (F). This
is typical for both types of springs. Also make sure the bottom half (D,G) of both springs are compressed and
locked by the appropriate locking tabs (H, I).
G
F E
H
D
I
