4-172 Service Manual
5026

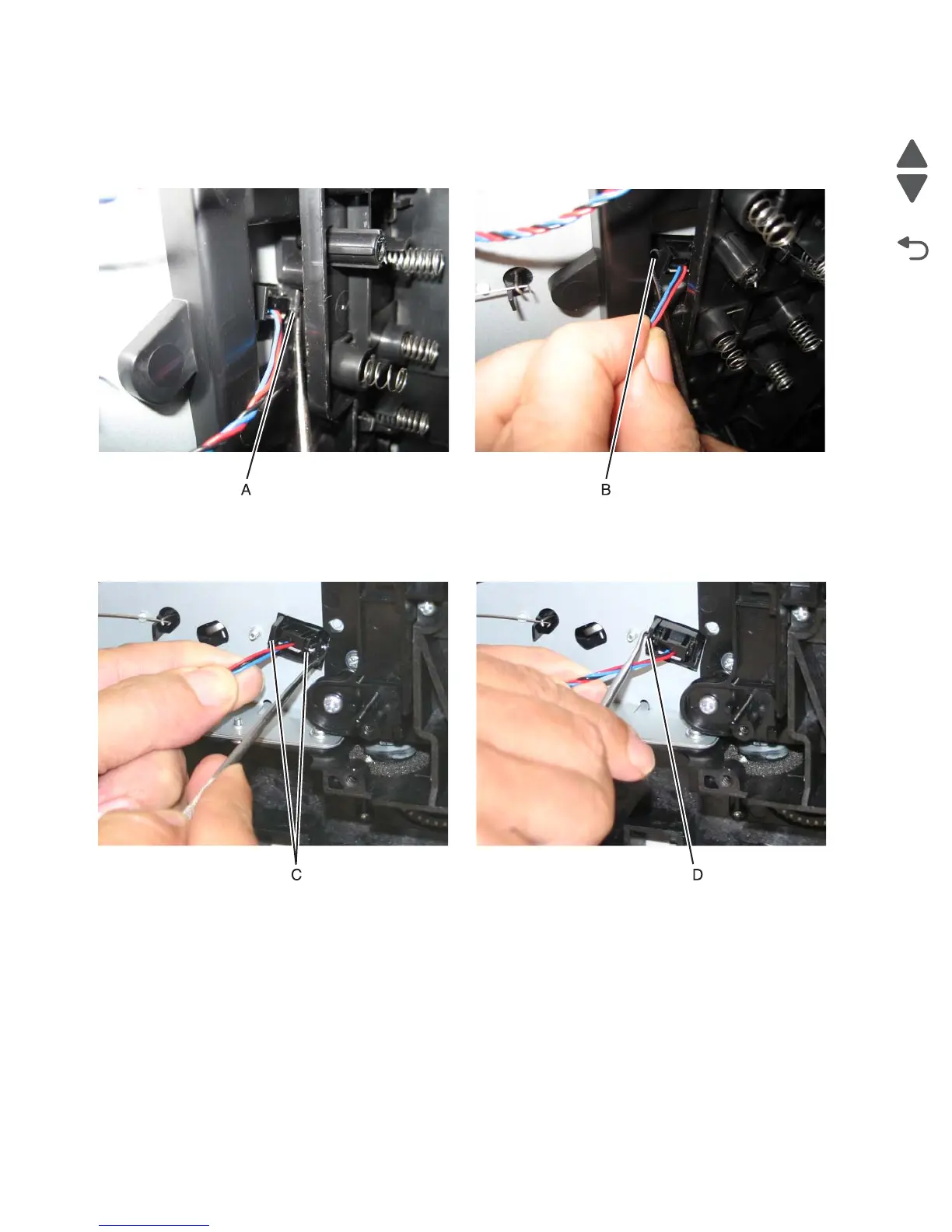

It is difficult to press both locking tabs at the same time. Using a spring hook, press the locking tab (A), and
disengage the sensor on that side. Press the other locking tab (B), and remove the sensor.
Note: Use a slight pressure on the cable to keep the first locking tab from relatching, while you disconnect
the second locking tab.
For the lower two sensors:
Using a spring hook, press the locking tab (C), and disengage the sensor on that side. Press the other
locking tab (D), and remove the sensor.
To Next Page
