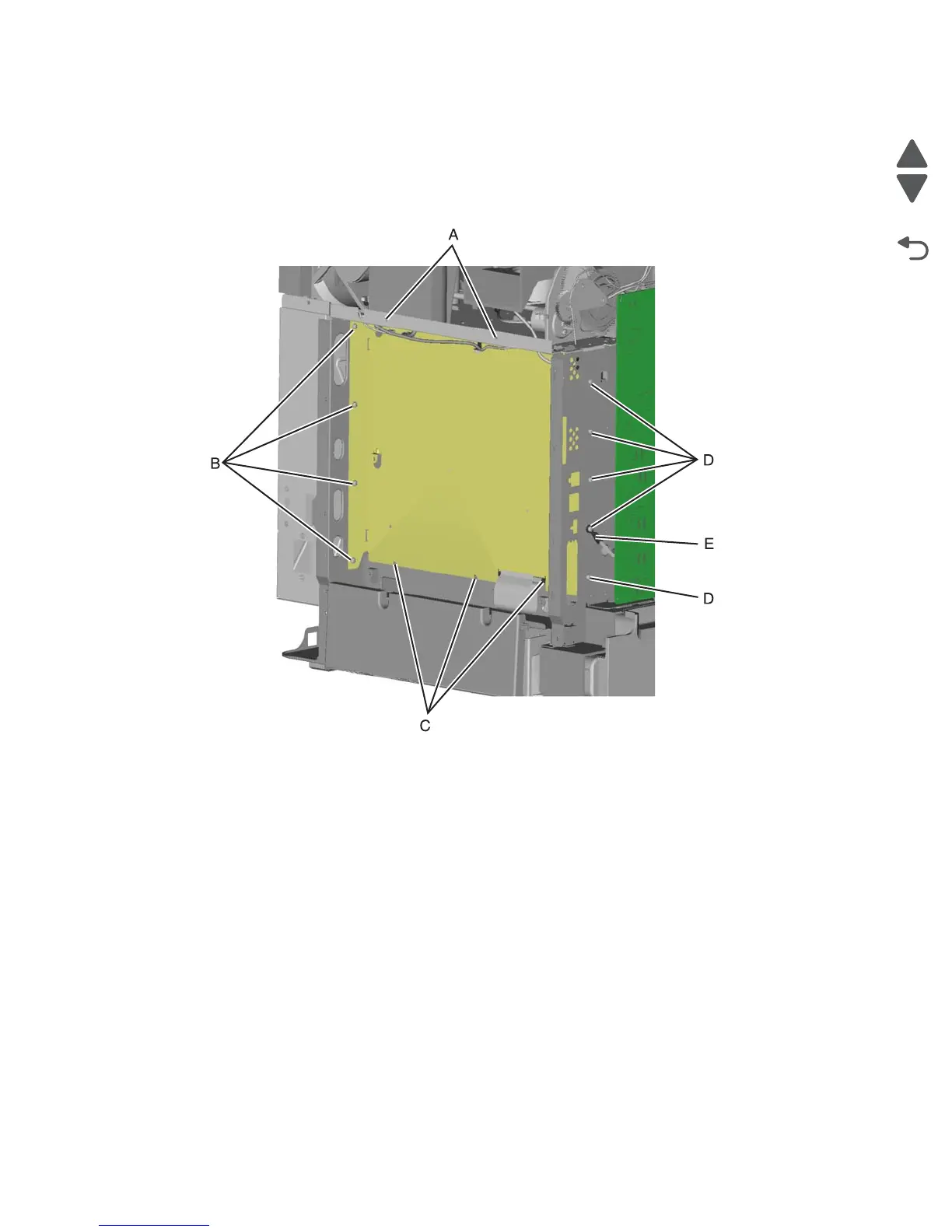

3. Replace the remaining system board support shield screws in the following order:
• Replace the four screws (B) from the inner right side of the support shield.
• Tighten the two mounting screws (A) to the top of the support shield.
• Replace the three screws (C) from the bottom of the support shield, and two screws from the top.
• Replace the five mounting screws (D) to the outer left side of the printer.
Note: Be sure to connect the printhead ground cable (E) to the fourth screw from the top.
