Repair information 4-99
5026
Go Back
Previous
Next

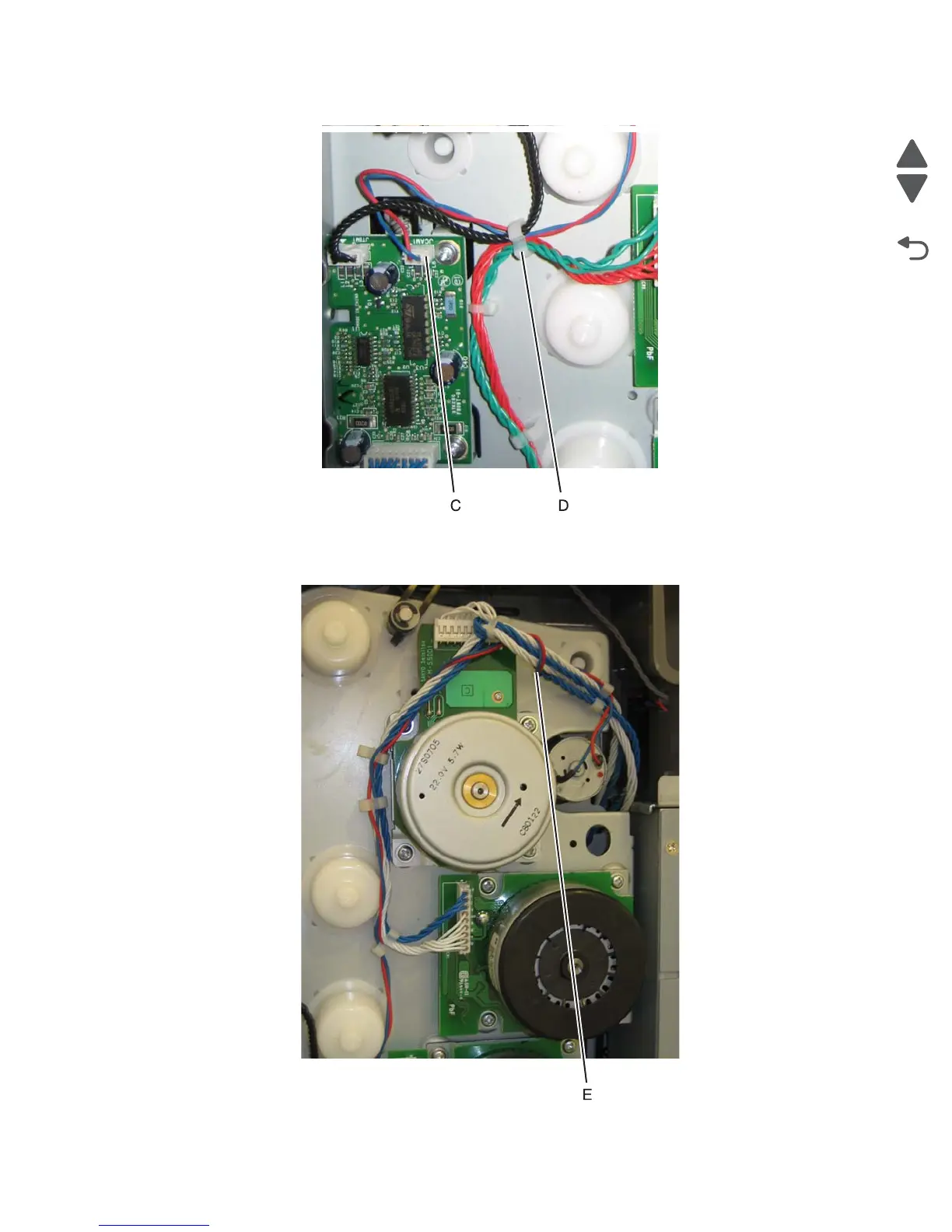

6. Disconnect the camshaft/transport cable connector (C), and remove the cable from the cable clamps (D).
7. Unwind the camshaft/transport cable and the cartridge 1/fuser cables (E).
Note: Be sure to rewind the camshaft/transport cable around the other cables with about four twists to
keep them from interfering with or being damaged by the motors.
