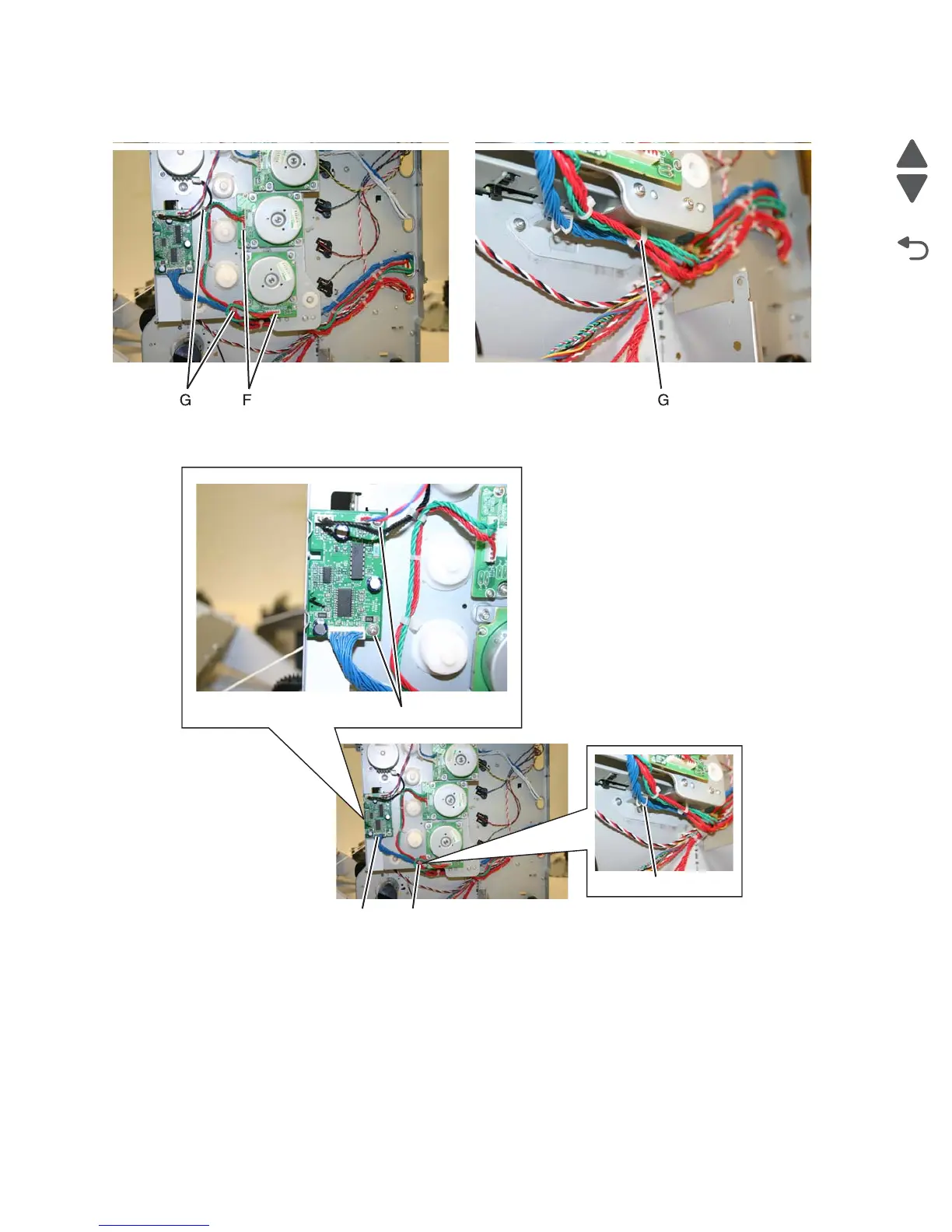

8. Disconnect the cartridge 2/cartridge 3 motor cable (two connectors) (F), and remove the cable from the
cable clamps (G).
9. Disconnect the motor drive cable connector (H), and remove the cable from the cable clamps (J).
10. Remove the two screws (K) to remove the motor driver card assembly.
11. Remove the two screws (L) on the inside
K
J
J
H
