Diagnostic aids 3-45
5026

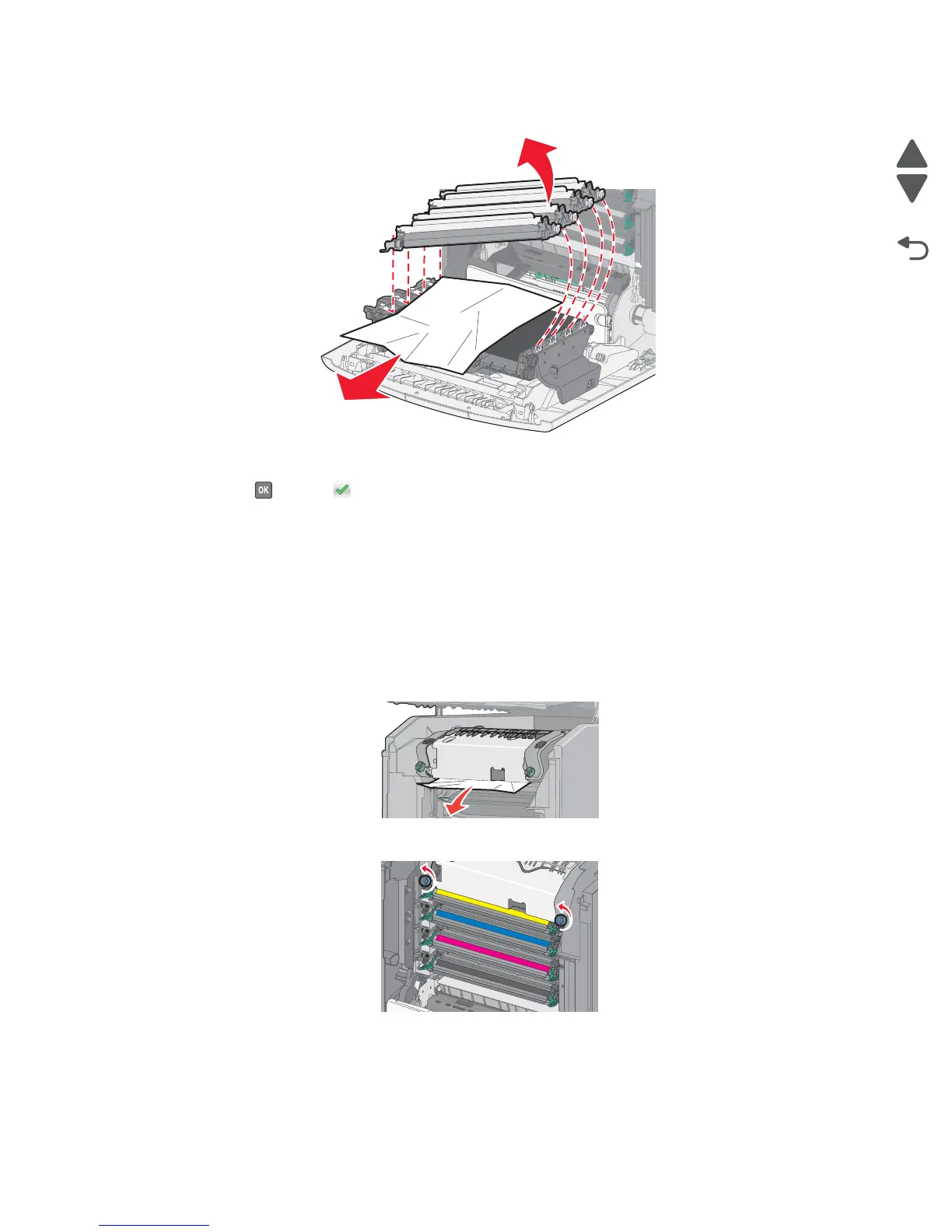

3. Remove each photoconductor unit, and place it on a flat surface.
4. Remove the jammed paper, and then replace each photoconductor unit.
5. Close the front door.
6. Press or touch .
201 paper jam
If paper is jammed under the fuser or the top cover, 201.xx Paper jam appears.
1. Open the front door, and then open the top cover.
Warning: Potential Damage: To avoid overexposing the photoconductor units, do not leave the front
door open longer than 10 minutes.
2. Determine where the jam is located:
a. If paper is visible under the fuser, grasp it on each side and pull it forward.
b. If paper is not visible, turn the screws on the fuser unit to the left.
