Bump aligner drive
The power to turn the bump aligner roll is supplied from the bump aligner motor. The motor drives a set of bump
aligner gears which causes the bump aligner roll to turn.
Note: If this motor is stalling or causing waste toner box full messages, the vertical auger mechanism might be
causing the problem.

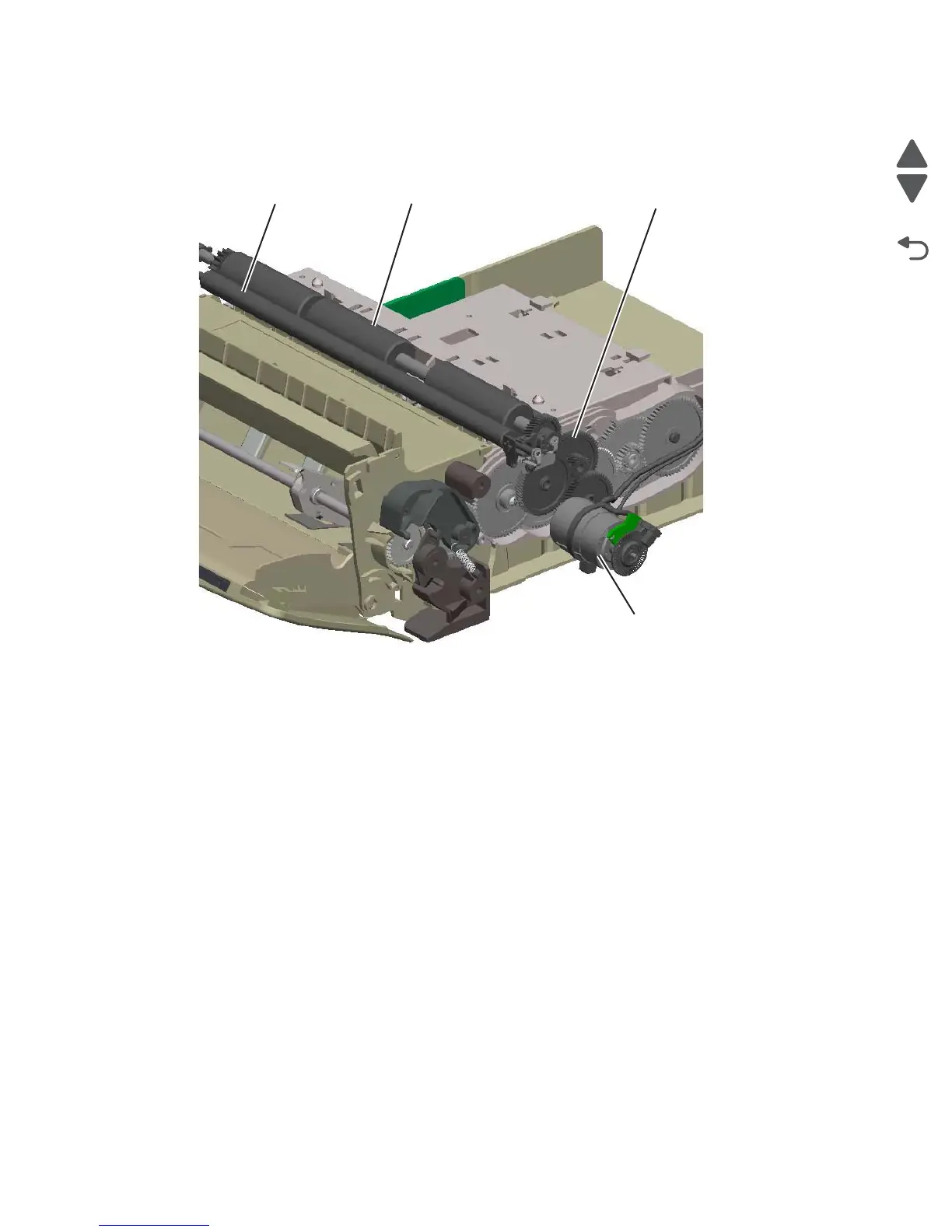

Bump aligner roll
Bump aligner gears
Bump aligner gears
Bump aligner motor
