Transfer belt drive

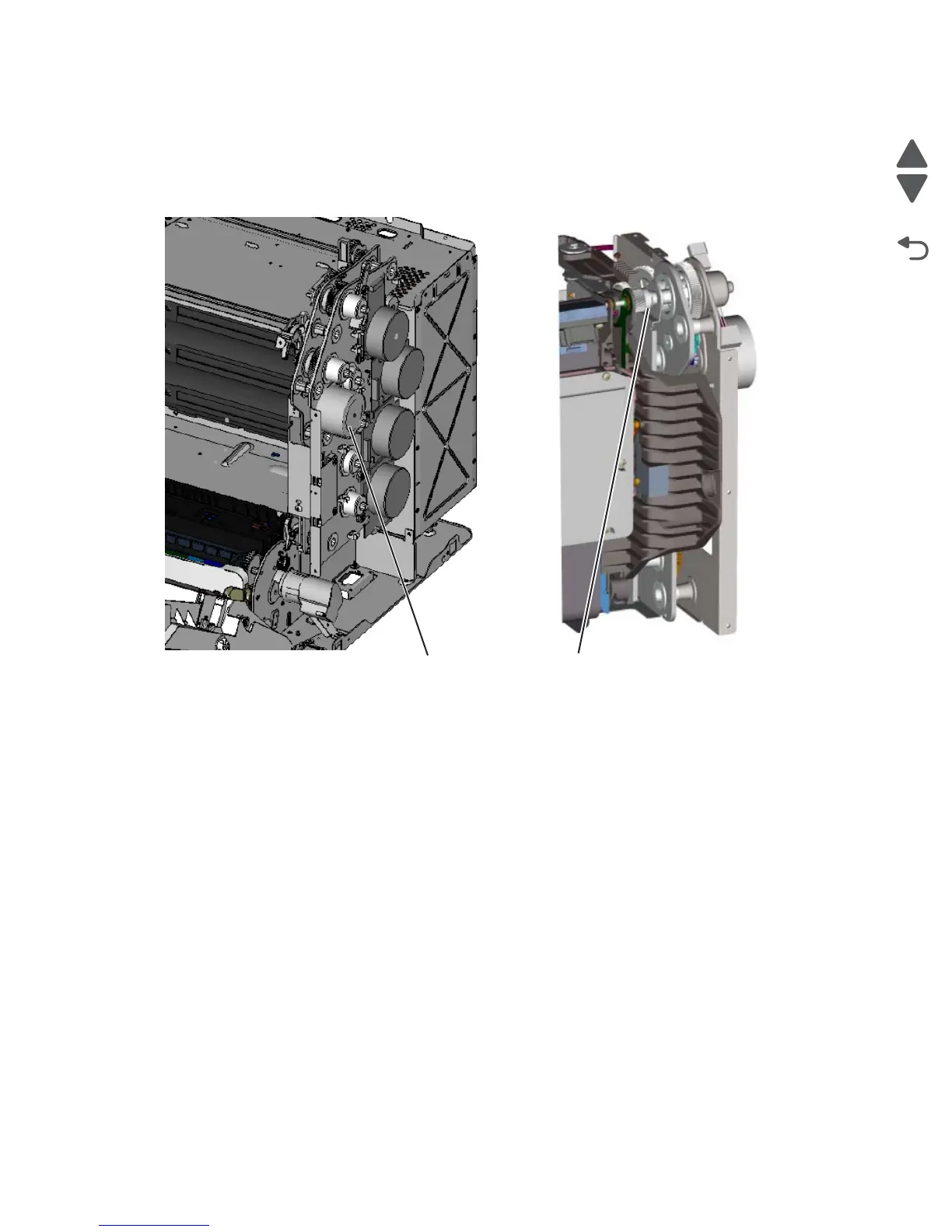

The transfer belt unit receives drive from a motor located on the EP drive assembly. When the top access door
is open, the coupler for the transfer belt disengages.
Fuser drive
The fuser drive (motor) is built into the fuser assembly and drives the fuser rollers to turn.
Inside
Coupler
Transfer belt motor
Outside
