4-26 Service Manual
5026

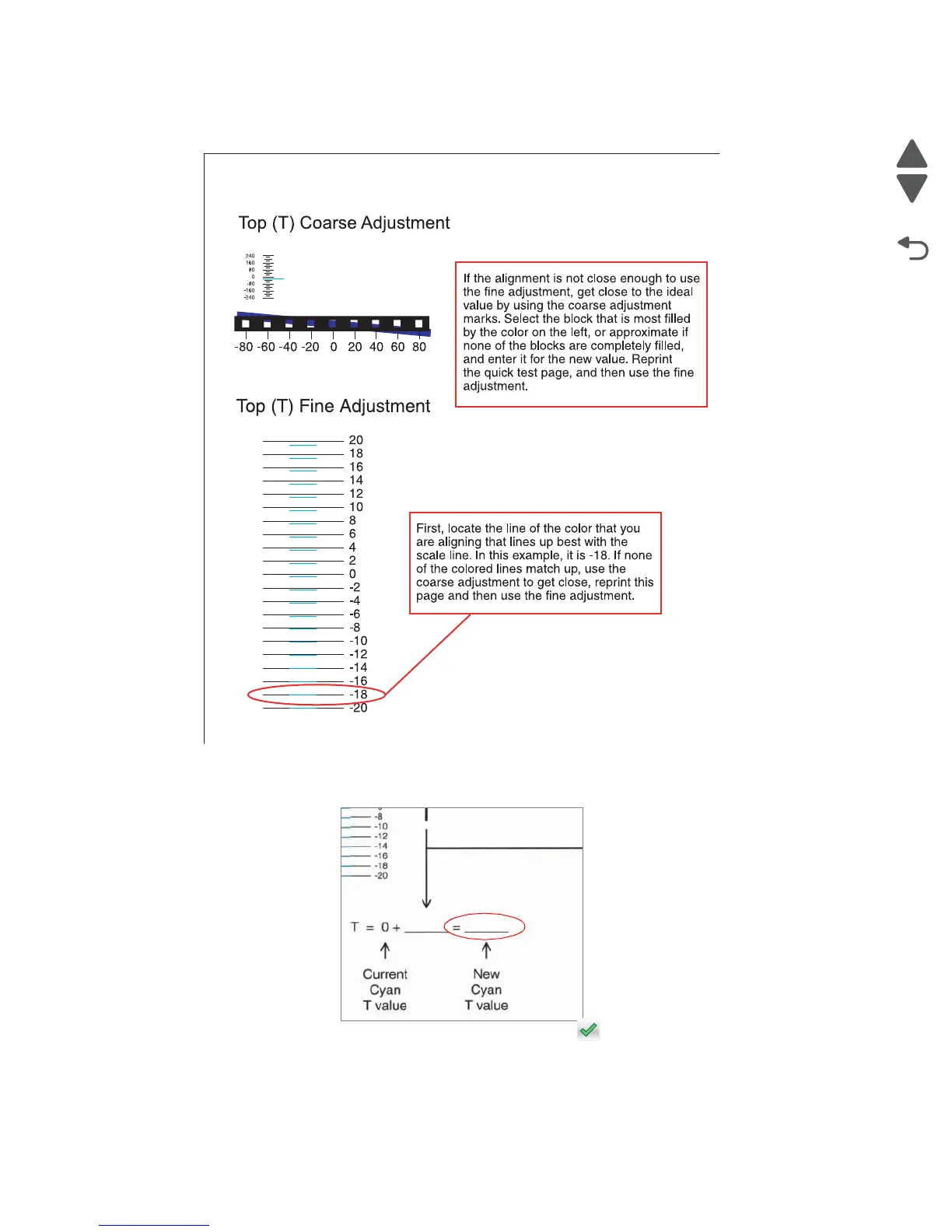

8. Determine the line under Fine Adjustment that is closest. If the value is beyond the Fine Adjustment scale,
use either of the Coarse Adjustment scales.
9. Enter the number determined from the Fine Adjustment scale or the Coarse Adjustment scales on the part
of the page for the “T” value. The current value is automatically entered on the sheet. At this point, it should
be zero.
10. Enter the “New Cyan T value” on the operator panel and touch to save the value.
11. Reprint the Quick Test, and evaluate whether you are at zero changes.
