4-32 Service Manual
5026

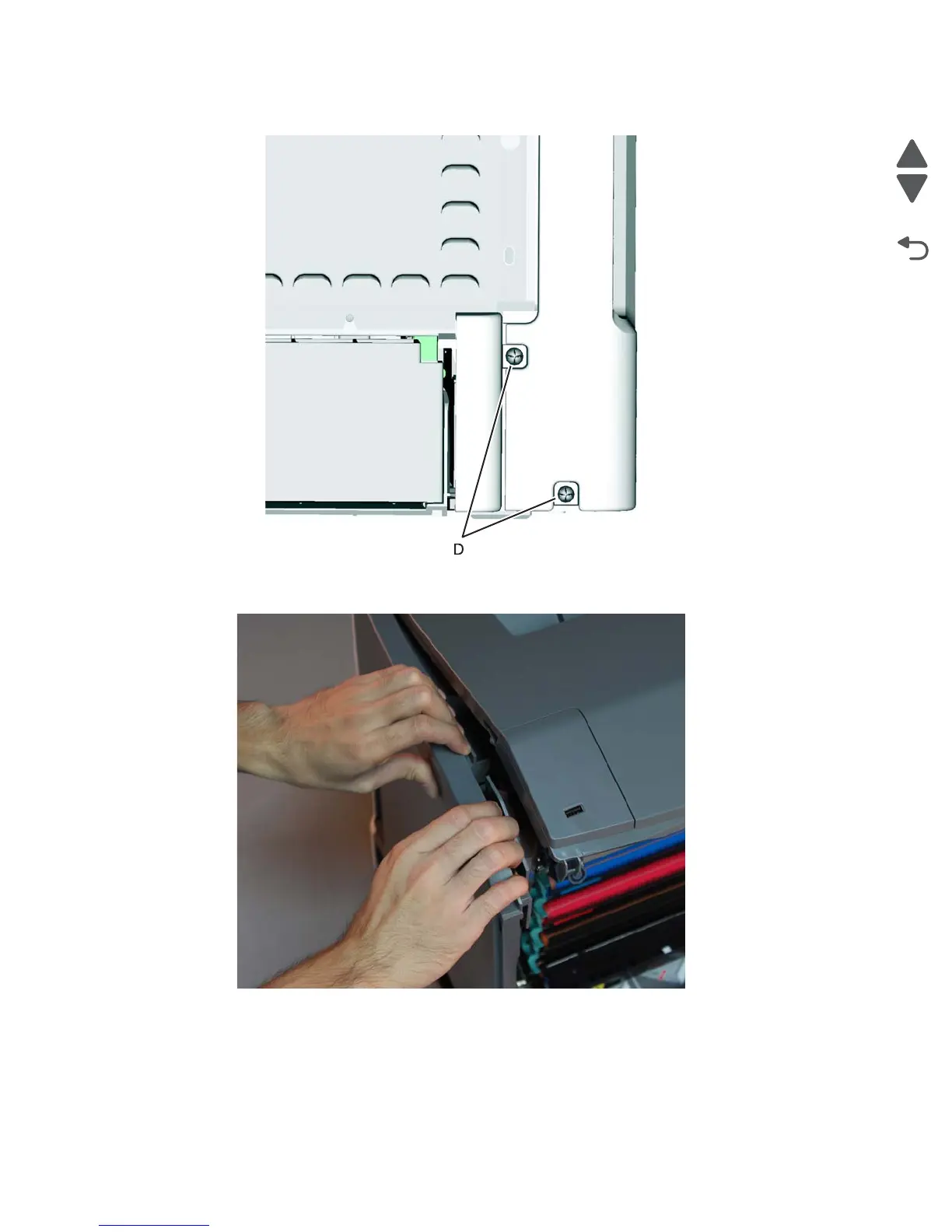

7. Remove the screws (D) from the rear left cover.
8. Unsnap the right cover from the top cover, then lift and remove the left cover and rear left cover together.
Note: Because the paper tray dust cover is loose at this point, set it aside.
Note: If you are removing the left cover to access another part, leave the left cover and the rear left cover
attached, and you are done. If you need to replace the left cover FRU, continue with the next step to remove the
separate rear left cover FRU.
To Next Page
