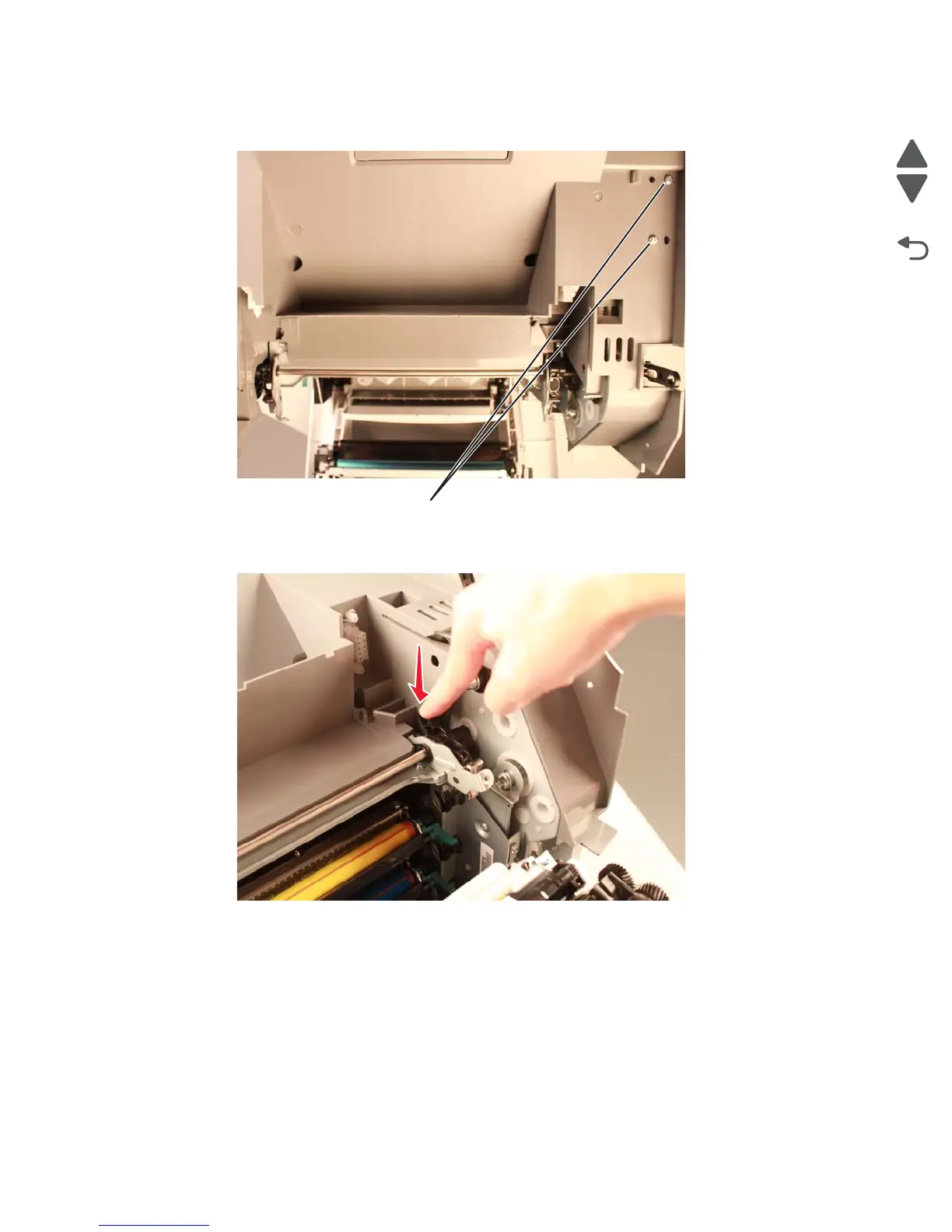

Note: If you are removing the top cover assembly of the C748x model, remove the two screws (F) to detach the
speaker mount. The speaker mount is not included as part of the top access cover assembly FRU.
7. Lift and remove the top cover assembly.
Installation note: Make sure to push down on the cam after reinstalling the top cover assembly.
F
