Lexmark CS748de - Page 355

Repair information 4-103
5026
Go Back
Previous
Next

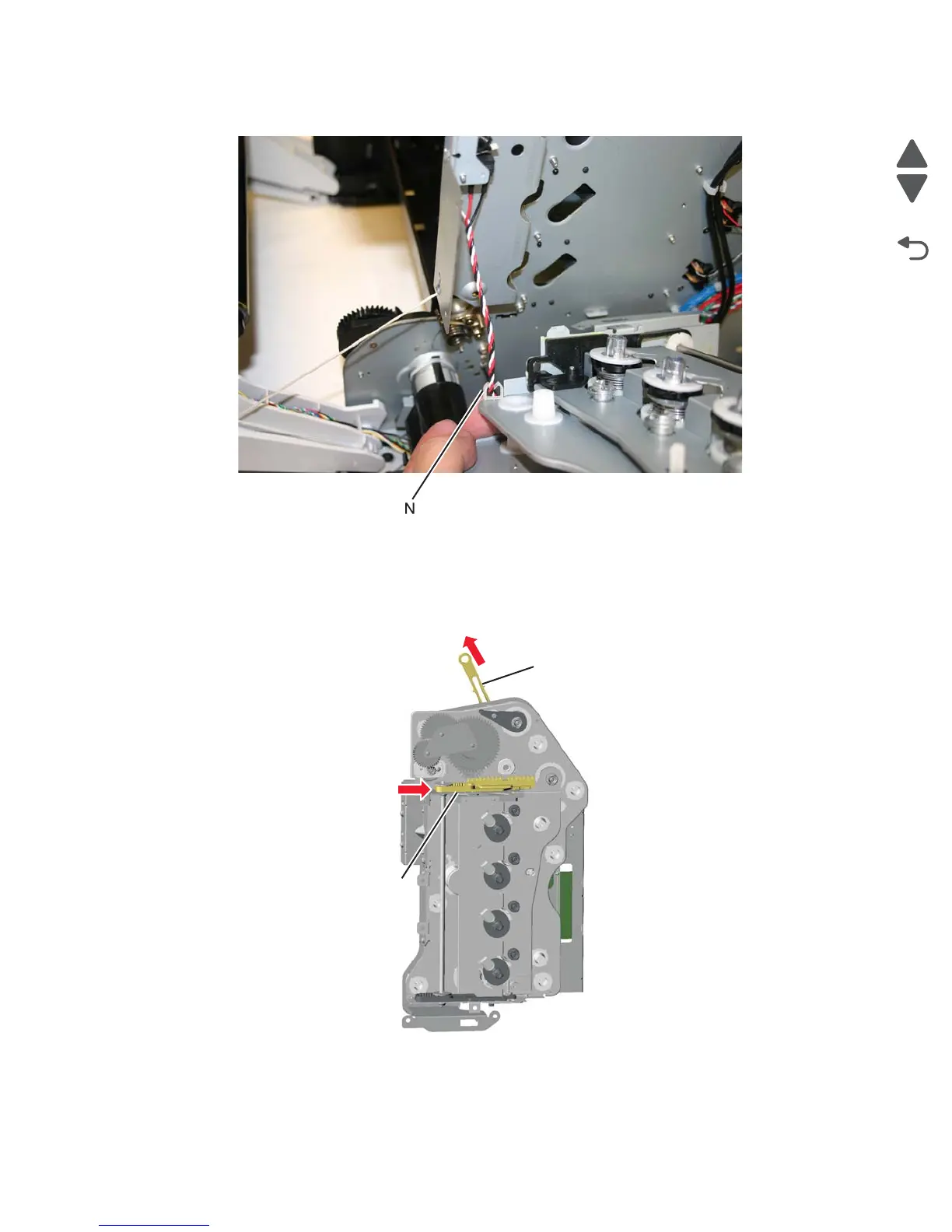

14. Remove the 5 V interlock switch cable from the restraint (N) on the backside of the EP drive.
15. Remove the EP drive.
Installation notes:
1. Push the actuator rack all the way to the right (A).
2. Pull the link all the way up (B).
A
B
