Installation note:

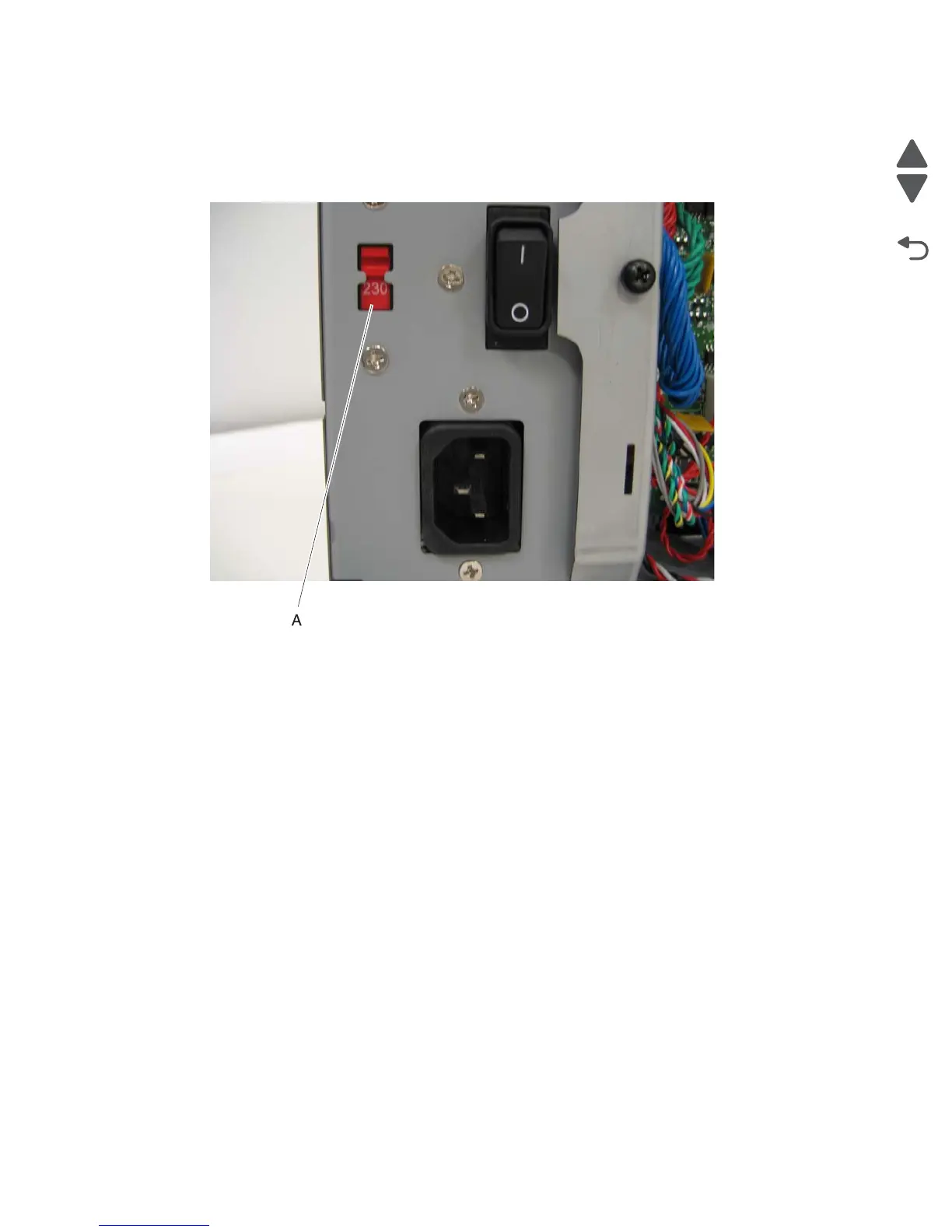

• When installing the new LVPS, make sure the voltage switch (A) is set for the proper value (115 V or
230 V), depending on the country.
Note: Not all LVPS FRUs have a switch. Others are switched automatically.
• Install the LVPS, and make sure the AC fuser cable is in the cable guides, and not behind the LVPS.
• Reconnect the AC fuser cable to the LVPS.
• Replace the five LVPS mounting screws.
• Reconnect the cable in connector JLVPS1 on the system board.
