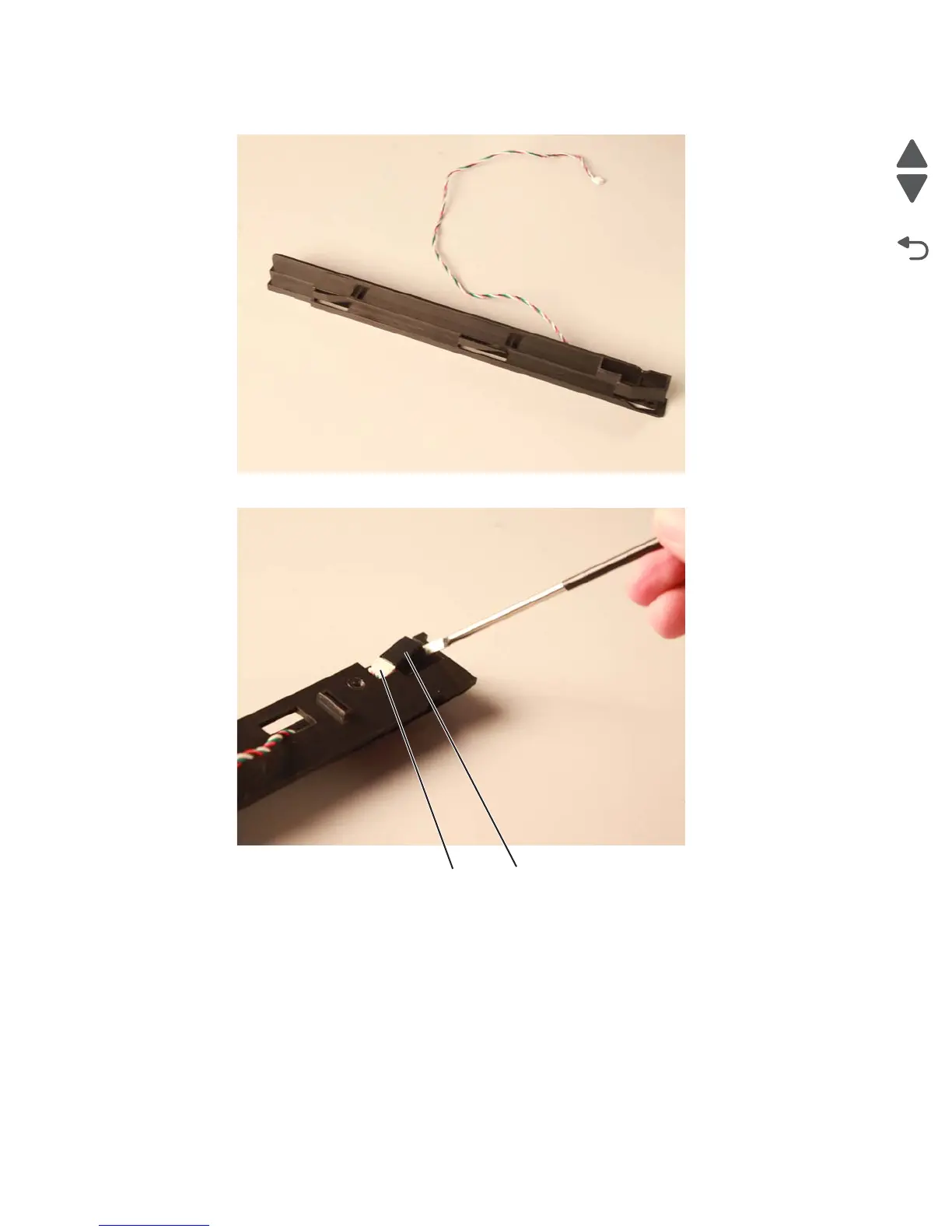

7. Remove the MPF paper sensor bracket from the machine.
8. Pry the sensor off the bracket, then disconnect the sensor (C) from the cable (D).
9. Remove the cable from the bracket.
Installation note: Pay attention to the routing of the cable.
C
D
