Repair information 4-175
5026
Go Back
Previous
Next

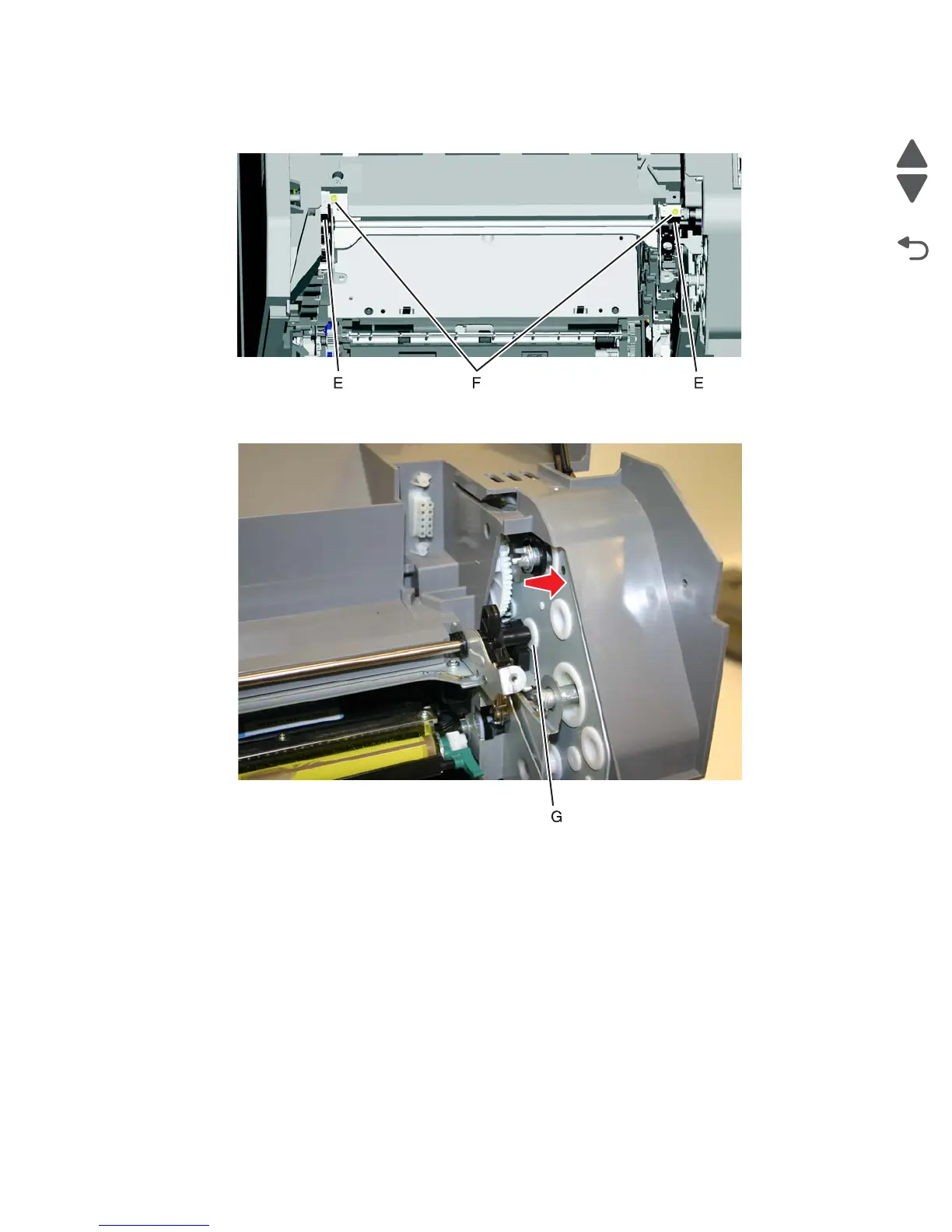

8. Rotate the camshaft up using the camshaft actuator handles (E) so you can access the other two
screws (F), and remove them.
9. Flex the EP drive assembly to remove the right side of the camshaft from the boss (G), and lift to remove
the camshaft.
