Lexmark CS748de - Page 467

Repair information 4-215
5026
Go Back
Previous
Next

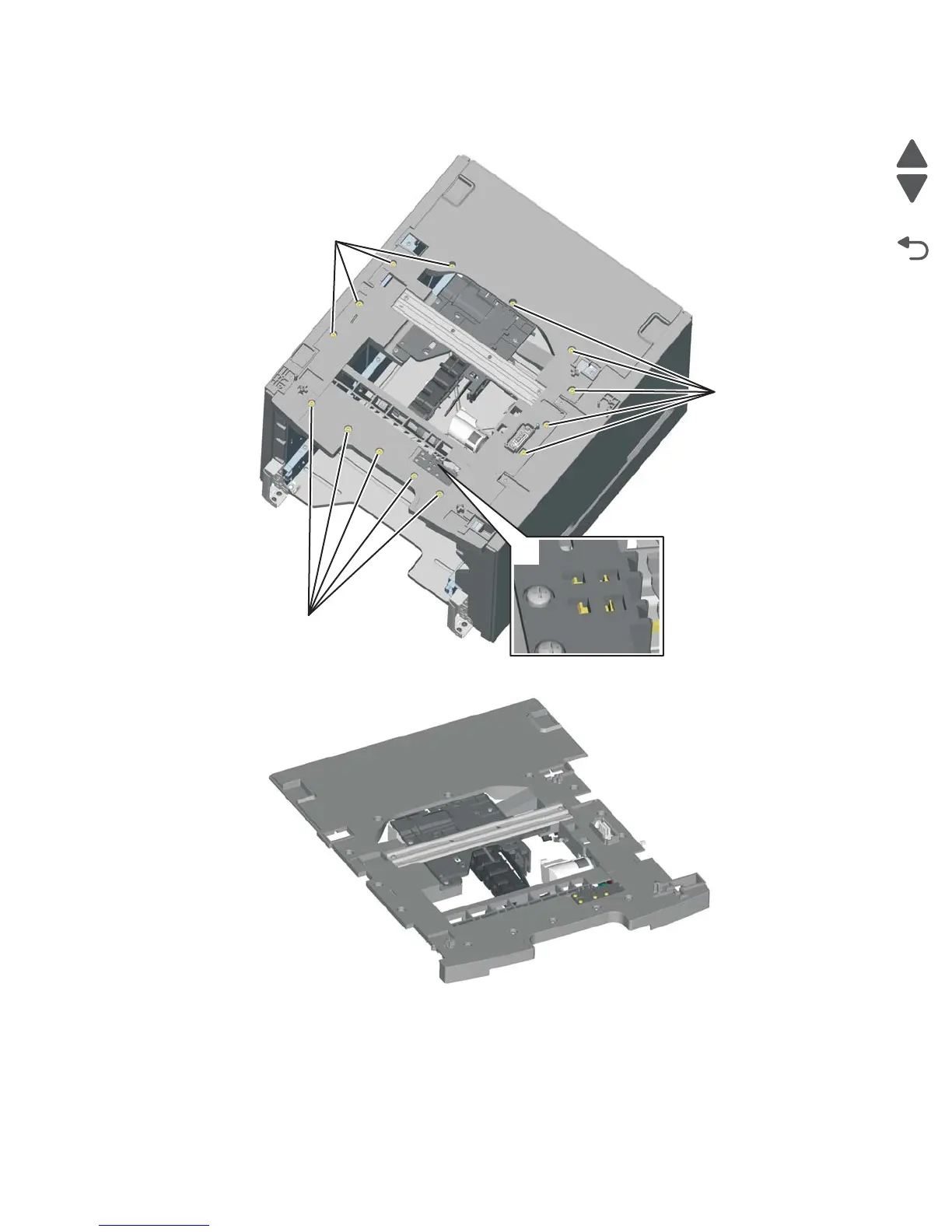

3. Release the hooks (B) securing the pass thru sensor from the top plate assembly.
4. Remove the fourteen screws (C) securing the top plate assembly to the frame.
5. Remove the top plate assembly.
B
C
C
C
