Repair information 4-13

7562

Go Back

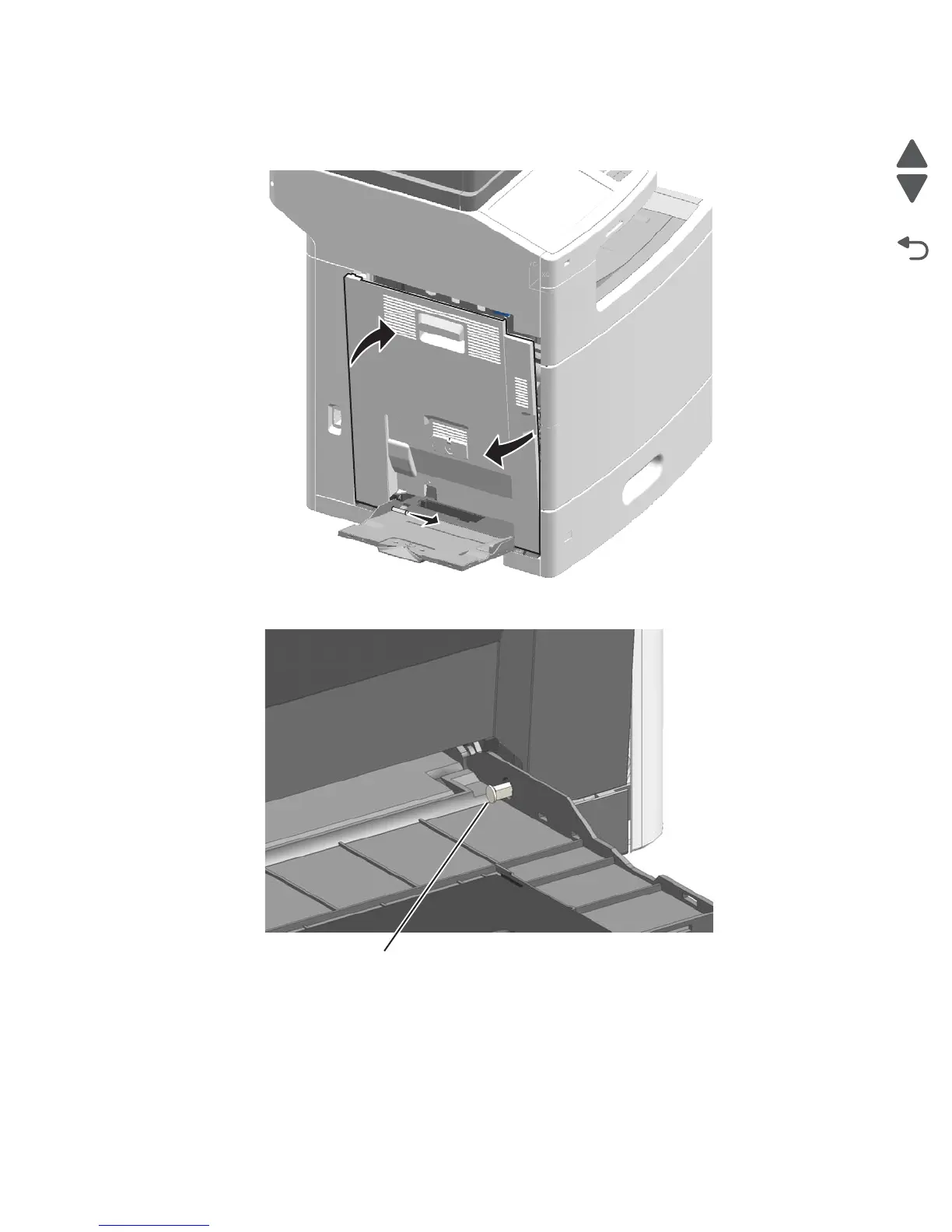

8. Open the left access cover slightly, grasp one of the pins, and move the left access door back and forth

gently while pulling the pin out.

This aligns the holes, so the pins come out easily.

9. Remove the other pin (E) in the same manner. See steps 7 and 8.

E (10J2831)
