Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: All cables connected to backplane dress in the direction indicated, and then
downward, to be routed beneath the shelf.

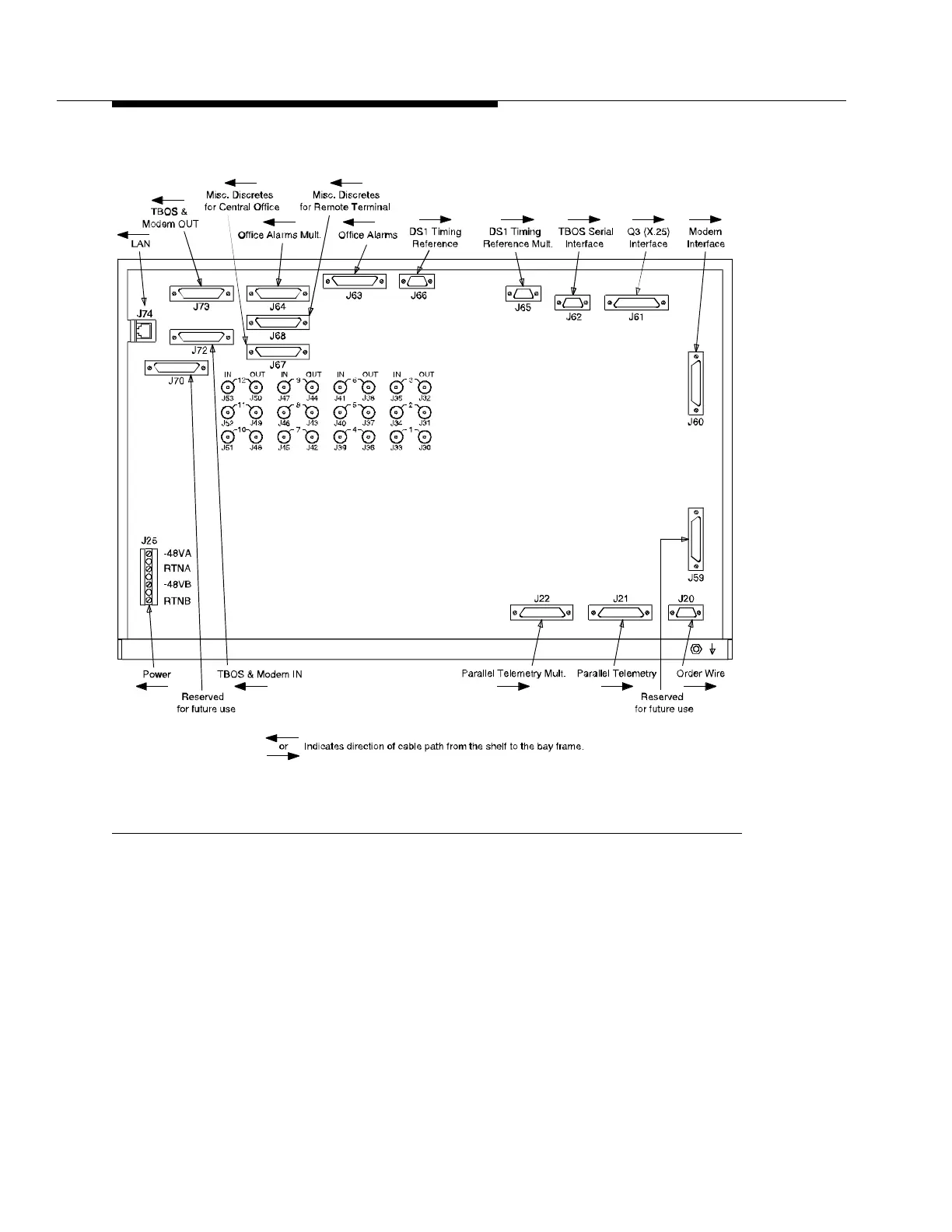

Figure 2-1. DDM-2000 OC-12 Backplane
