Lucent Technologies DDM-2000 OC-12 - Figure 2-22. Single Shelf DS1 Sync Timing, TL1 Interface, Order Wire, and Modem Cabling

Issue 5 November 2000 
363-206-208
Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: Refer to Table 2-2 on page 2-34 and Table 2-3 on page 2-35 for specific cable assemblies.

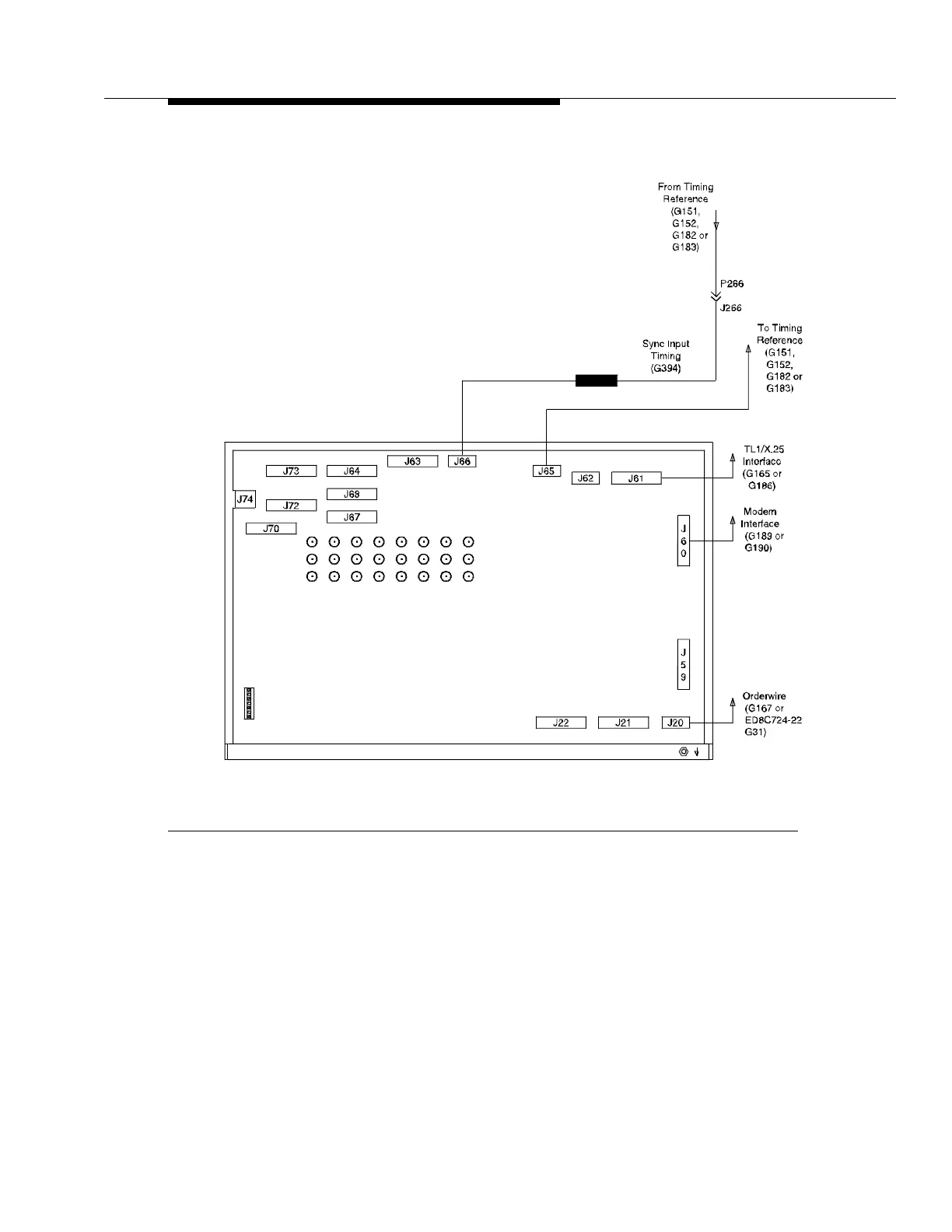

Figure 2-22. Single Shelf DS1 Sync Timing, TL1 Interface, Order Wire, and Modem Cabling
