Lucent Technologies DDM-2000 OC-12 - Figure 2-2. ED-8 C500 or 8 C800 Frame, Rear Access Cable Placement

To Next Page

To Previous Page

Issue 5 November 2000 

363-206-208

Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer

Lucent Technologies - Proprietary

See Notice on first page

Note: The cabling stacking order is shown in the figure. The numbers on the cables

indicate the shelf associated with that cable.

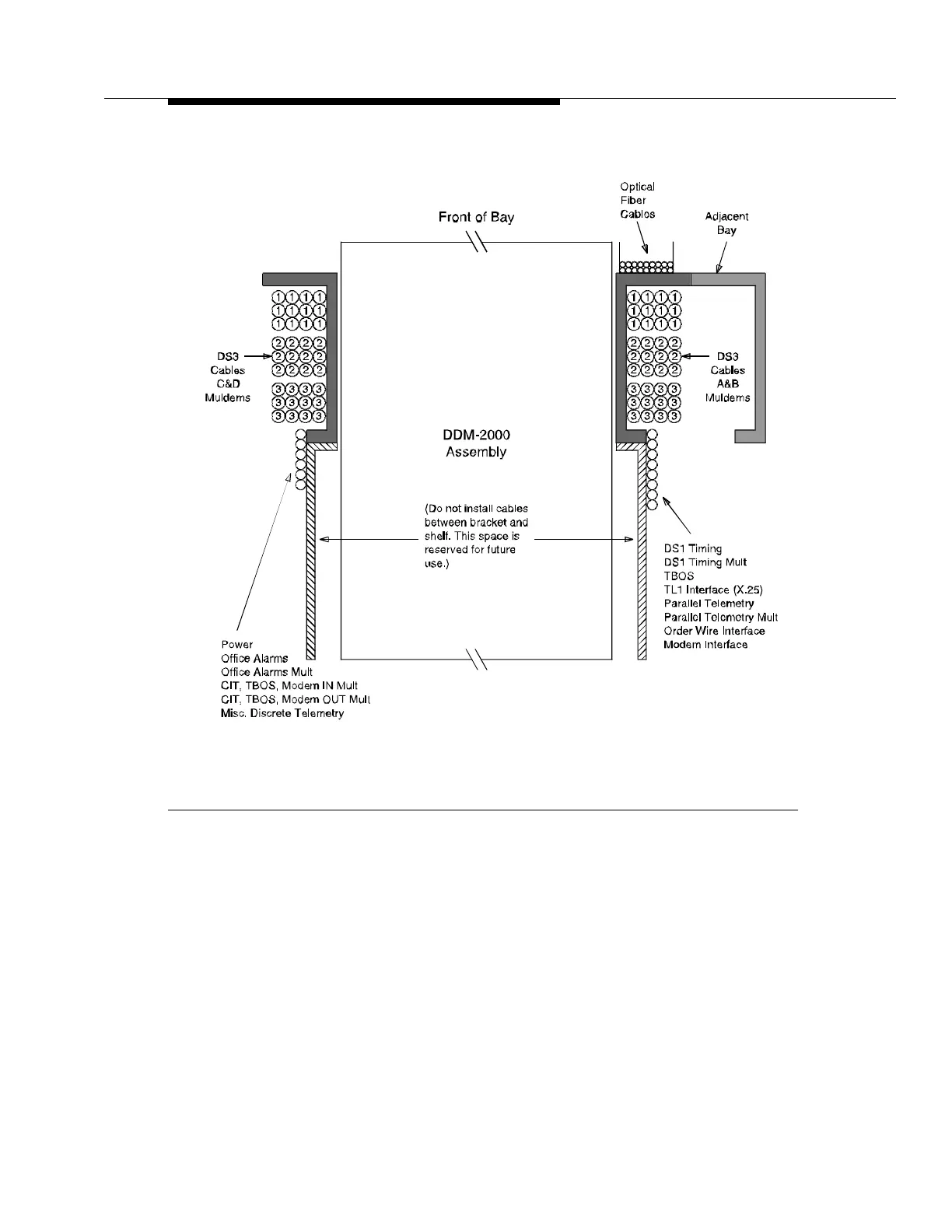

Figure 2-2. ED-8C500 or 8C800 Frame, Rear Access Cable Placement
