Lucent Technologies DDM-2000 OC-12 Installation Manual

Issue 5 November 2000 
363-206-208
Equipment and Front Access Cable Installation for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: Refer to ED-8C724-10 for specific equipment locations within a bay.

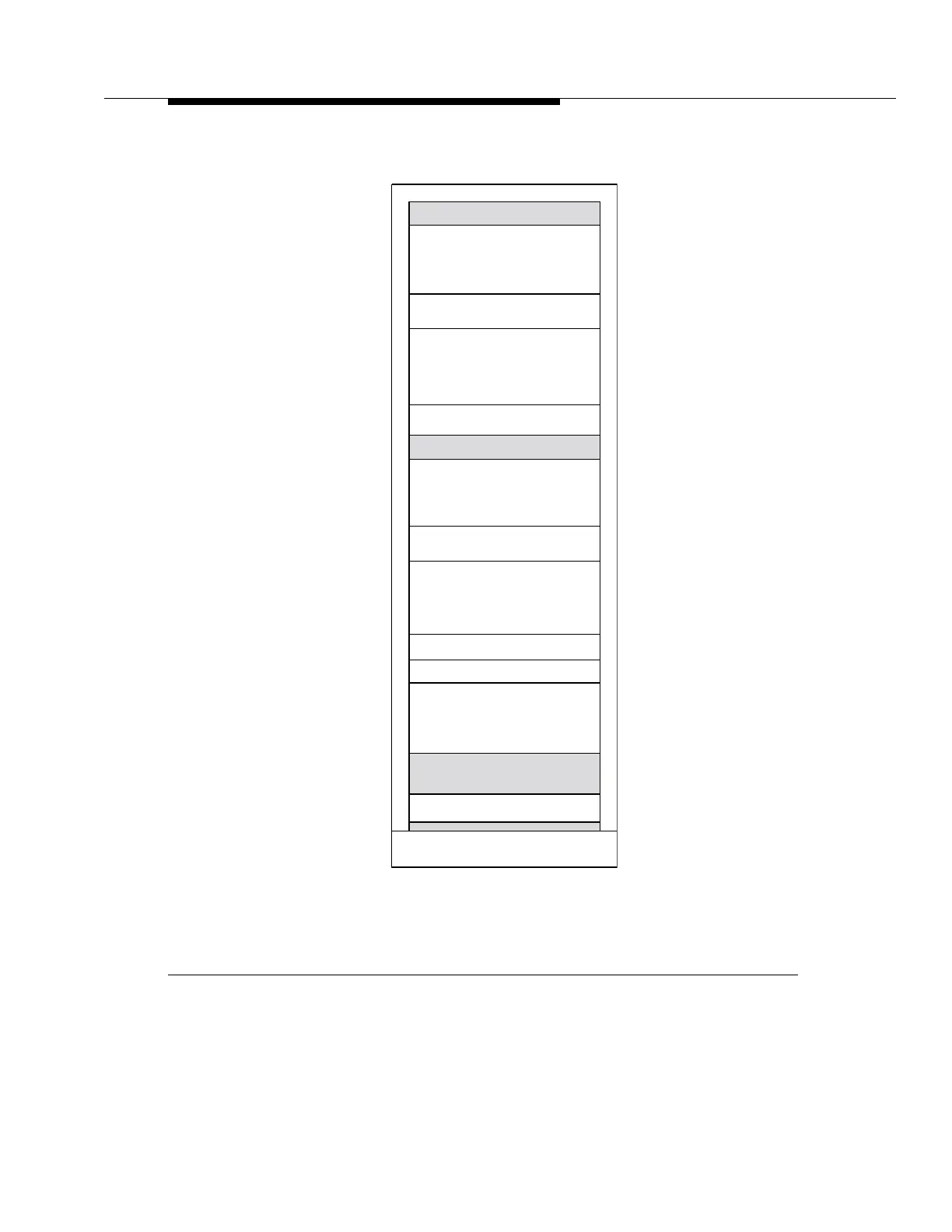

Figure 3-6. Bay Mounting Arrangement for DDM-2000 OC-3/OC-12 Combined Bay
Baffle
(Shelf Position 1)
OC-3
DDM-2000
(Shelf Position 2)
Baffle or Fan Unit
Baffle
Air Gap
Combination Bay Arrangement
Typical OC-3/OC-12
Fiber Storage Shelf
Air Gap
Air Gap
OC-12
DDM-2000
Fan Unit
OC-3
DDM-2000
(Shelf Position 3)
OC-3
DDM-2000
Baffle or Fan Unit
(Shelf Position 4)
OC-3
DDM-2000
