Issue 5 November 2000
363-206-208
Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Notes:
1. Lift the air filter, using the plastic tabs, into the cavity at the bottom of the DDM-2000 OC-12
shelf at an angle as shown.
2. Place the rear edge of the filter on top of the shelf “lip” and push forward to compress the leaf
springs attached to the shelf.
3. While applying enough pressure to keep the leaf springs compressed, rotate the front of the fil-
ter upward until it contacts the bottom of the shelf cavity.
4. Release the filter and ensure that the leaf springs force the filter forward to the position shown,
securing it within the shelf cavity.

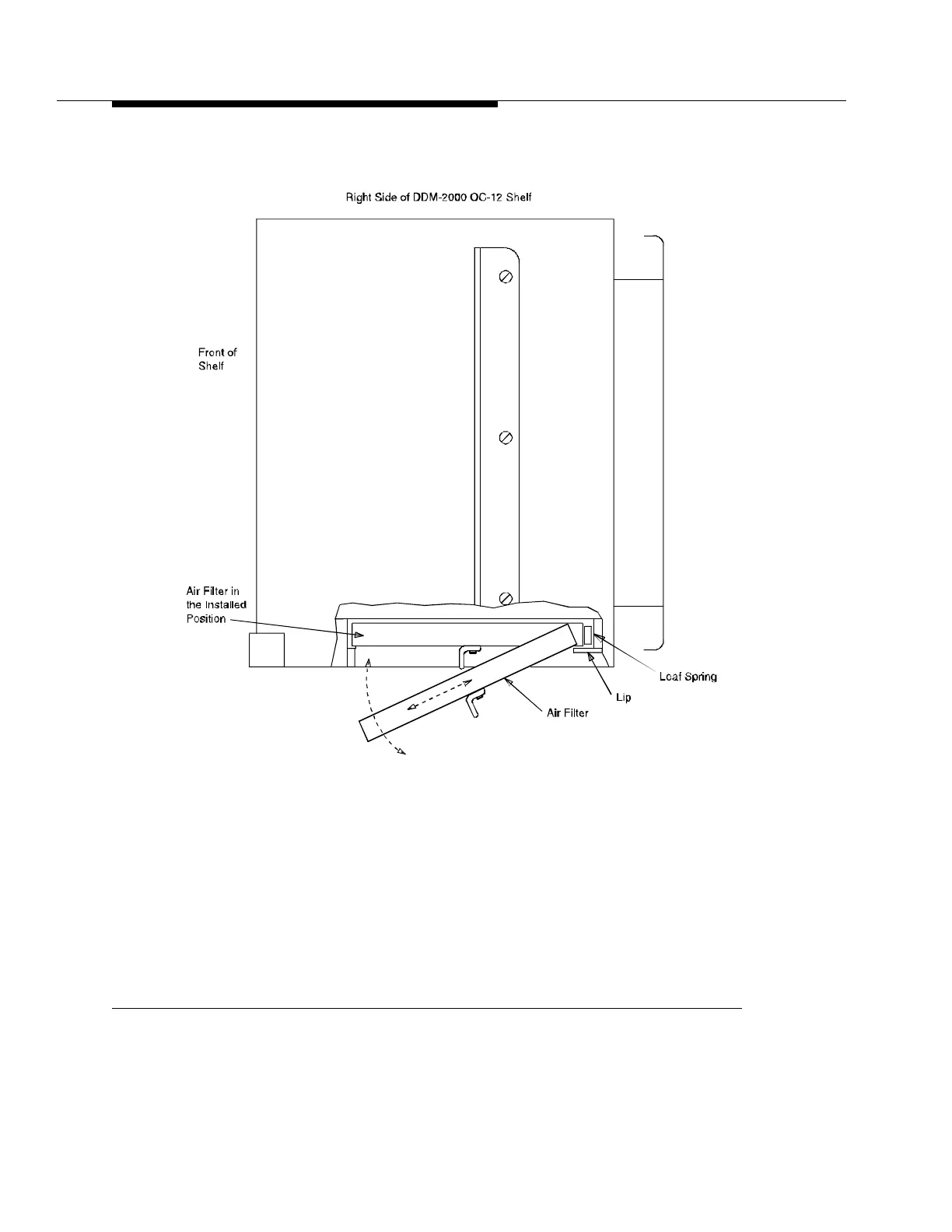

Figure 2-9. Fan Filter Installation
