Lucent Technologies DDM-2000 OC-12 - Figure 4-1. ED8 C906-300 Groups 4 and 6 OC-3;OC-12 Bays

Issue 5 November 2000 
363-206-208
DDM-2000 OC-3/OC-12 Bay Installation
Lucent Technologies - Proprietary
See Notice on first page

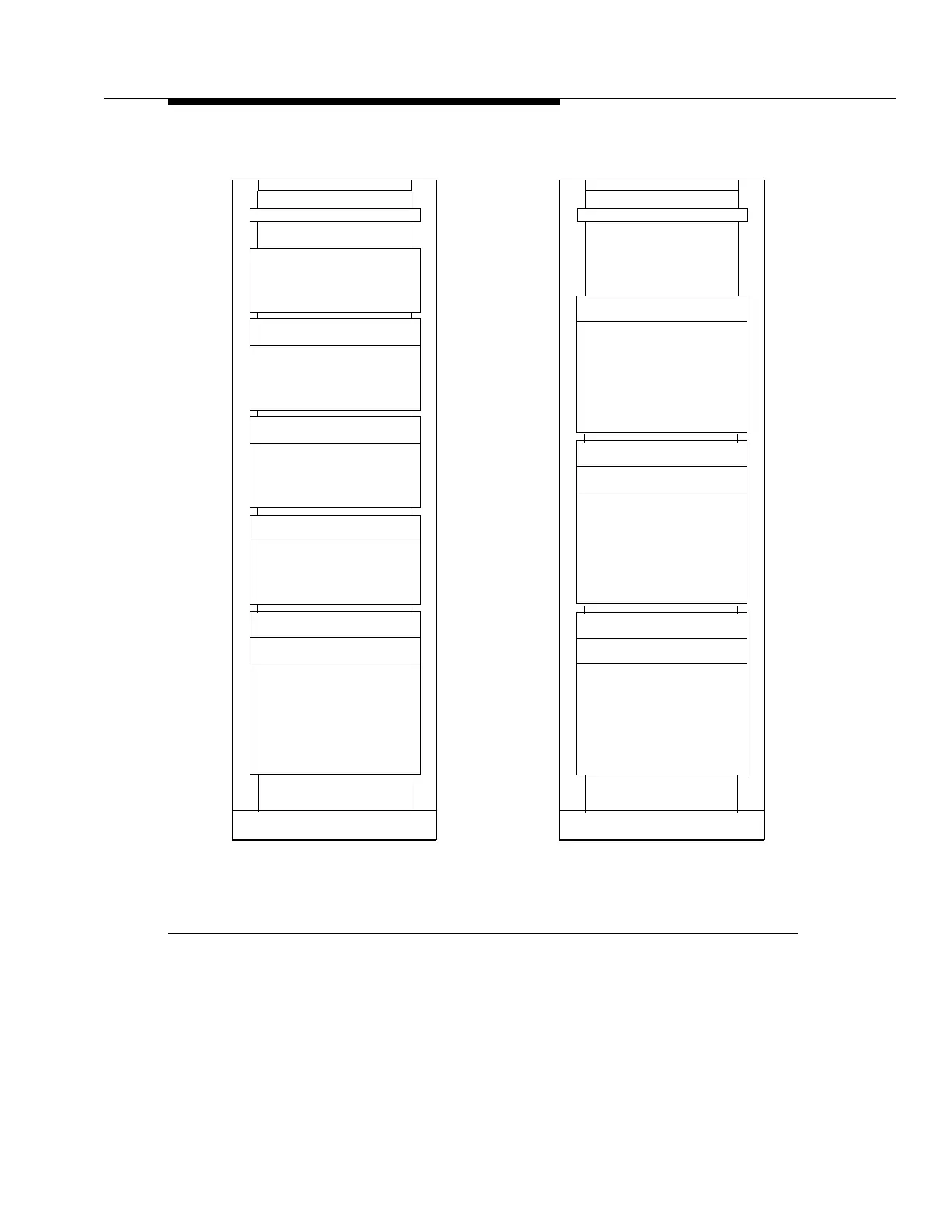

Figure 4-1. ED8C906-300 Groups 4 and 6 OC-3/OC-12 Bays
Fuse Panel
OC-12 Shelf No. 1
OC-3 Shelf No. 1
OC-3 Shelf No. 2
OC-3 Shelf No. 3
OC-3 Shelf No. 4
Baffle
Baffle
Baffle
Baffle
Fan Shelf
ED8C906-30
Group 6
ED8C906-30
Group 4
OC-12 Shelf No. 1
Baffle
Fan Shelf
OC-12 Shelf No. 2
Baffle
Fan Shelf
OC-12 Shelf No. 3
Fan Shelf
