Lucent Technologies DDM-2000 OC-12 Installation Manual

Issue 5 November 2000 
363-206-208
Powering, Verification, and Circuit Pack Installation for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: Set the LBO setting based on the type of cable used and the cable length.

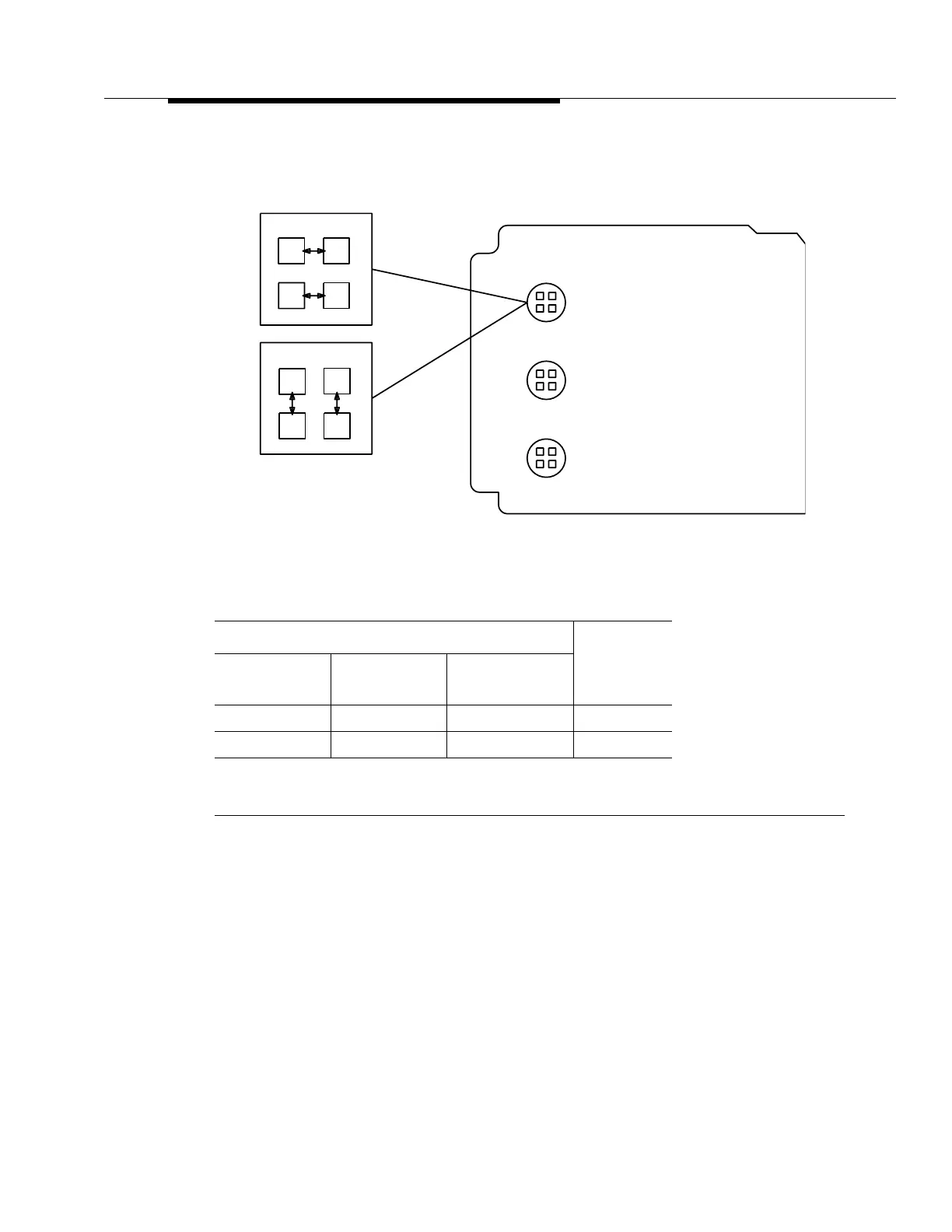

Figure 5-6. BBG11/BBG11B 3DS3 Option Jumpers
Cable Length (ft.)
LBO
Settings
(Note)
735A
1735006A
734A KS-19224, L2
0 to 125 0 to 225 0 to 75 LBO IN
>125 to 245 >225 to 450 >75 to 150 LBO OUT
# 2
# 1
Component Side
# 3
LBO OUT
LBO IN
Connector
Edge
