Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer

Lucent Technologies - Proprietary

See Notice on first page

Notes:

1. The output common must be wired to an external ground for miscellaneous

(environmental) outputs #1-10.

2. Miscellaneous (environmental) alarm input #14 (terminal 3 on J58) is typically wired

to DDM-2000 OC-12 fan shelf.

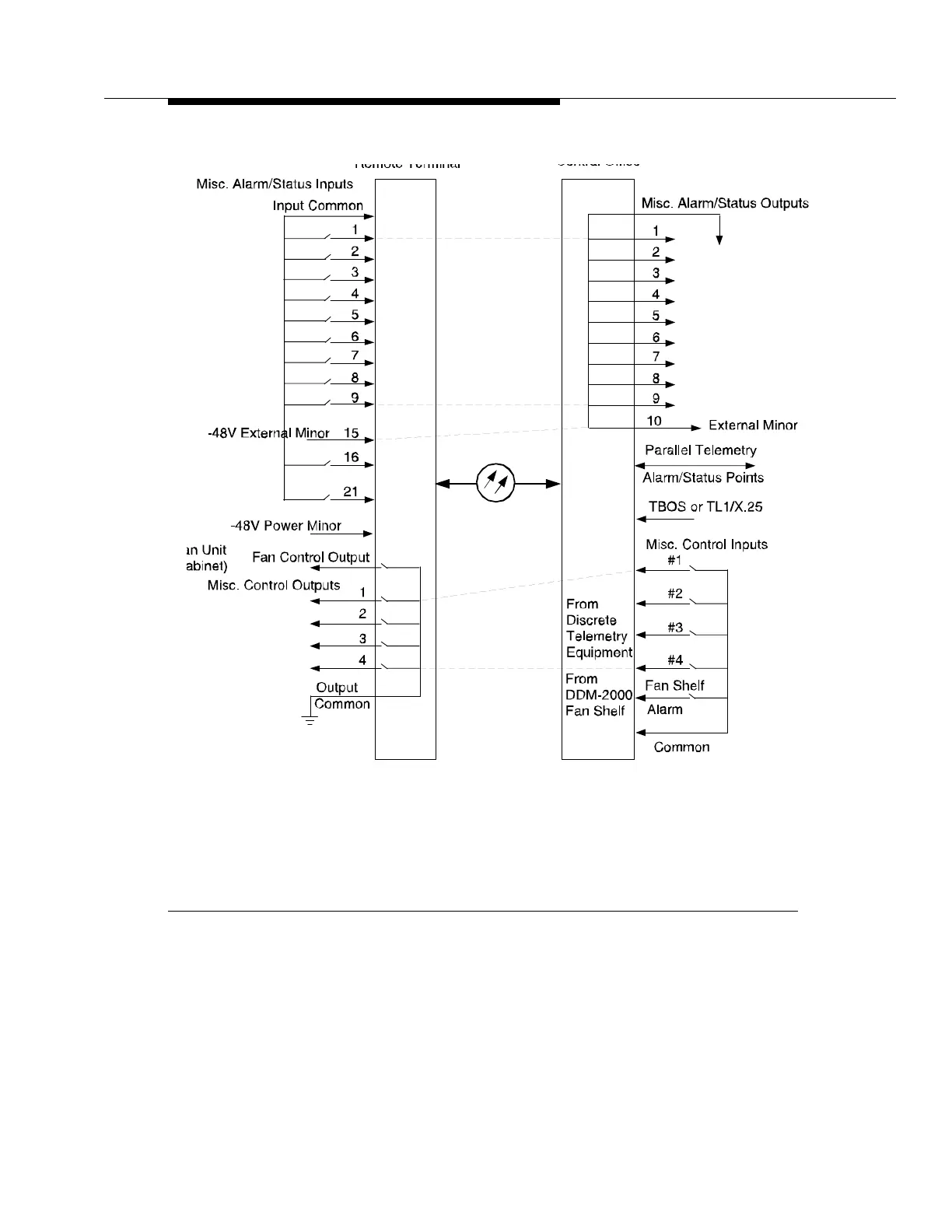

Figure 2-20. Miscellaneous (Environmental) Discrete Functions (Releases 5)
