 Issue 5 November 2000

363-206-208

Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer

Lucent Technologies - Proprietary

See Notice on first page

Notes:

1. The output common must be wired to an external ground for miscellaneous outputs #1-4.

2. The alarm input from the fan shelf is connected to miscellaneous input #14 via J68 terminal 3)

on the DDM-2000 OC-12 shelf.

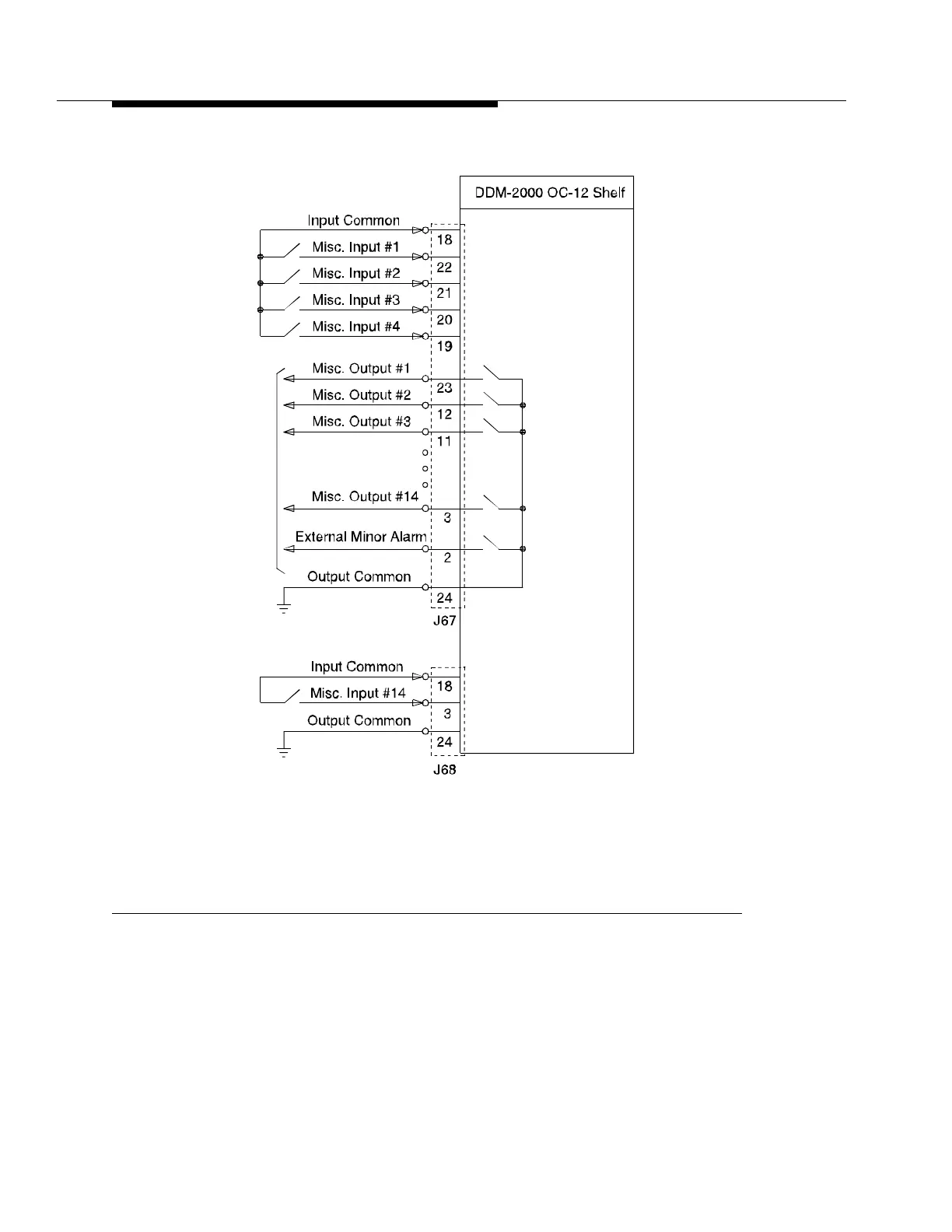

Figure 2-19. CO Terminal Miscellaneous Discrete Functions (Releases prior to 5)
