Issue 5 November 2000 
363-206-208
Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Notes:
1. Miscellaneous alarm input #1 is typically wired to the open door alarm in Lucent cabinet config-
urations.
2. Miscellaneous alarm input #14 is typically used for fan shelf alarm in controlled environment
(noncabinet) applications.
3. The output common must be wired to an external ground for fan control, external minor and
power minor alarm inputs, and for miscellaneous discretes #1-4.

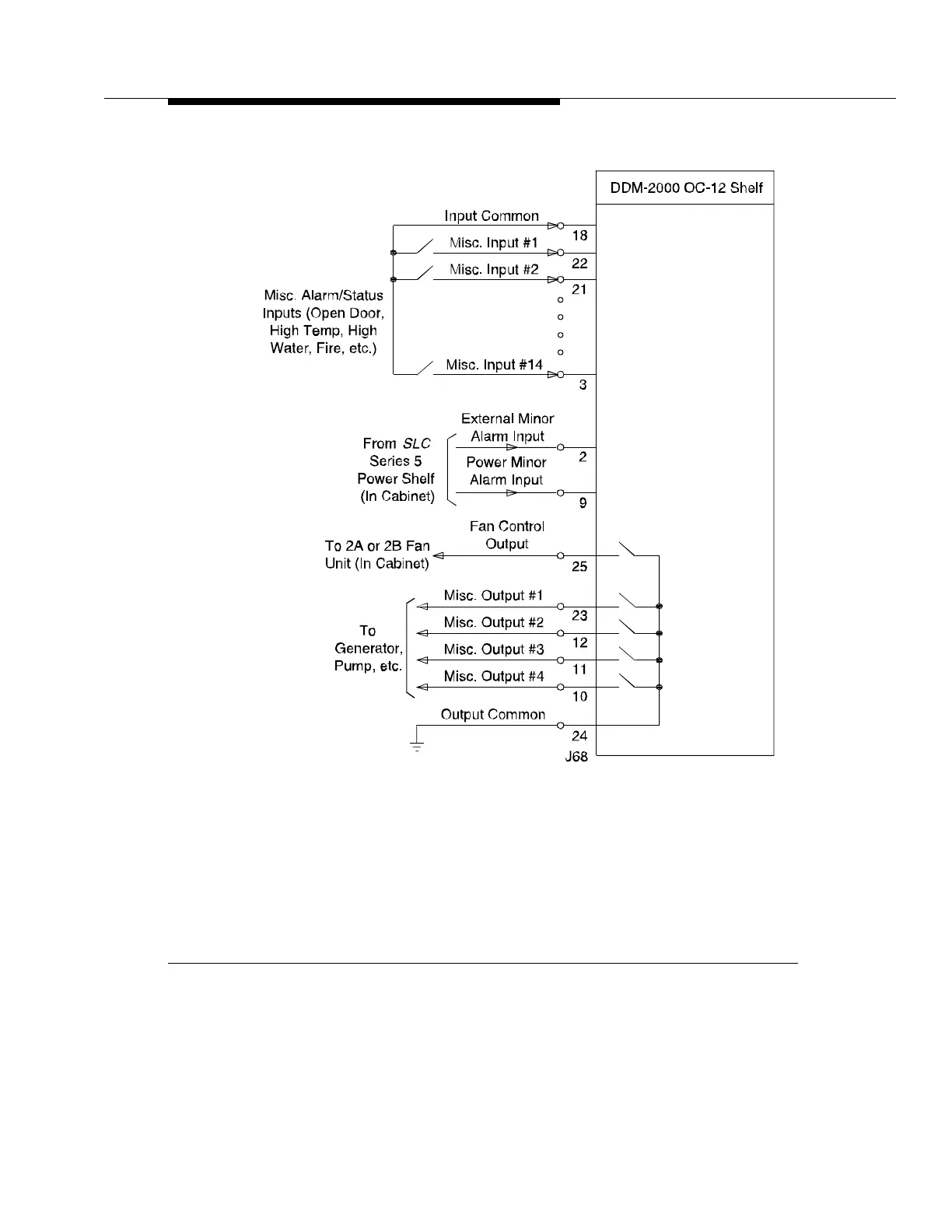

Figure 2-18. Remote Terminal Miscellaneous Discrete Functions (Releases prior to 5)
