Lucent Technologies DDM-2000 OC-12 Installation Manual

Issue 5 November 2000 
363-206-208
Powering, Verification, and Circuit Pack Installation for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
SYSCTL Switch 1 Note:
1. For DDM-2000 OC-12 applications, switch 1 sections 1, 2 and 3 must be set to the OFF position.

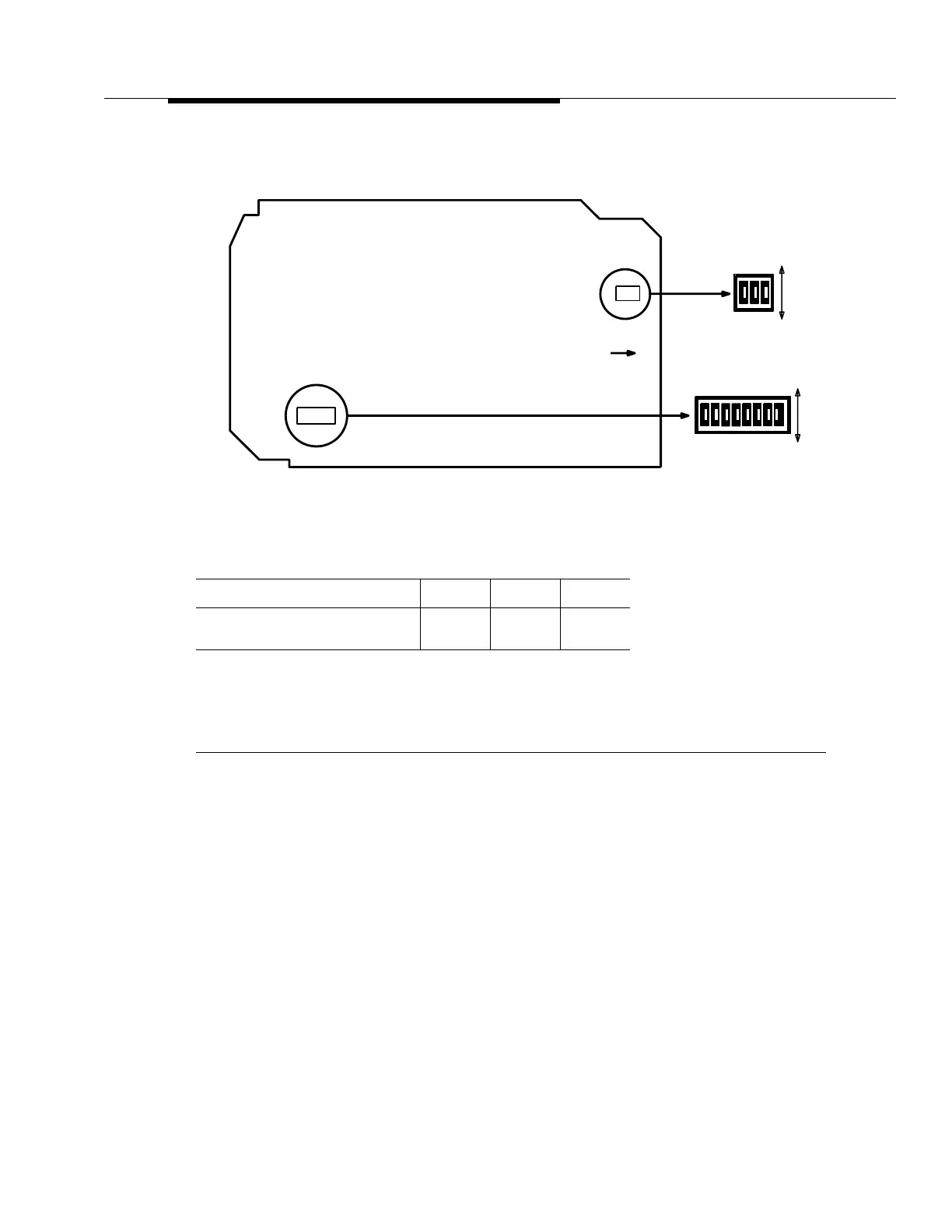

Figure 5-4. BBG8 SYSCTL Option Switches (Sheet 1 of 2)
Switch 1 Settings
Product Identification Sec 1 Sec 2 Sec 3
DDM-2000/SLC-2000/
DDM-2000 FiberReach
OFF OFF OFF
Component Side
Connector
Edge
OFF
21
S1
S1
Latch
ON
S2
876543
S2
OFF
ON
21
3
