Lucent Technologies DDM-2000 OC-12 Installation Manual

 Issue 5 November 2000
363-206-208
Equipment and Front Access Cable Installation for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Notes:
1. Miscellaneous alarm input #1 is typically wired to the open door alarm in Lucent cabinet configurations.
2. Miscellaneous alarm input #14 is typically used for fan shelf alarm in controlled environment (noncabinet)
applications.
3. The output common must be wired to an external ground for fan control, external minor and power minor
alarm inputs, and for miscellaneous discretes #1-4.

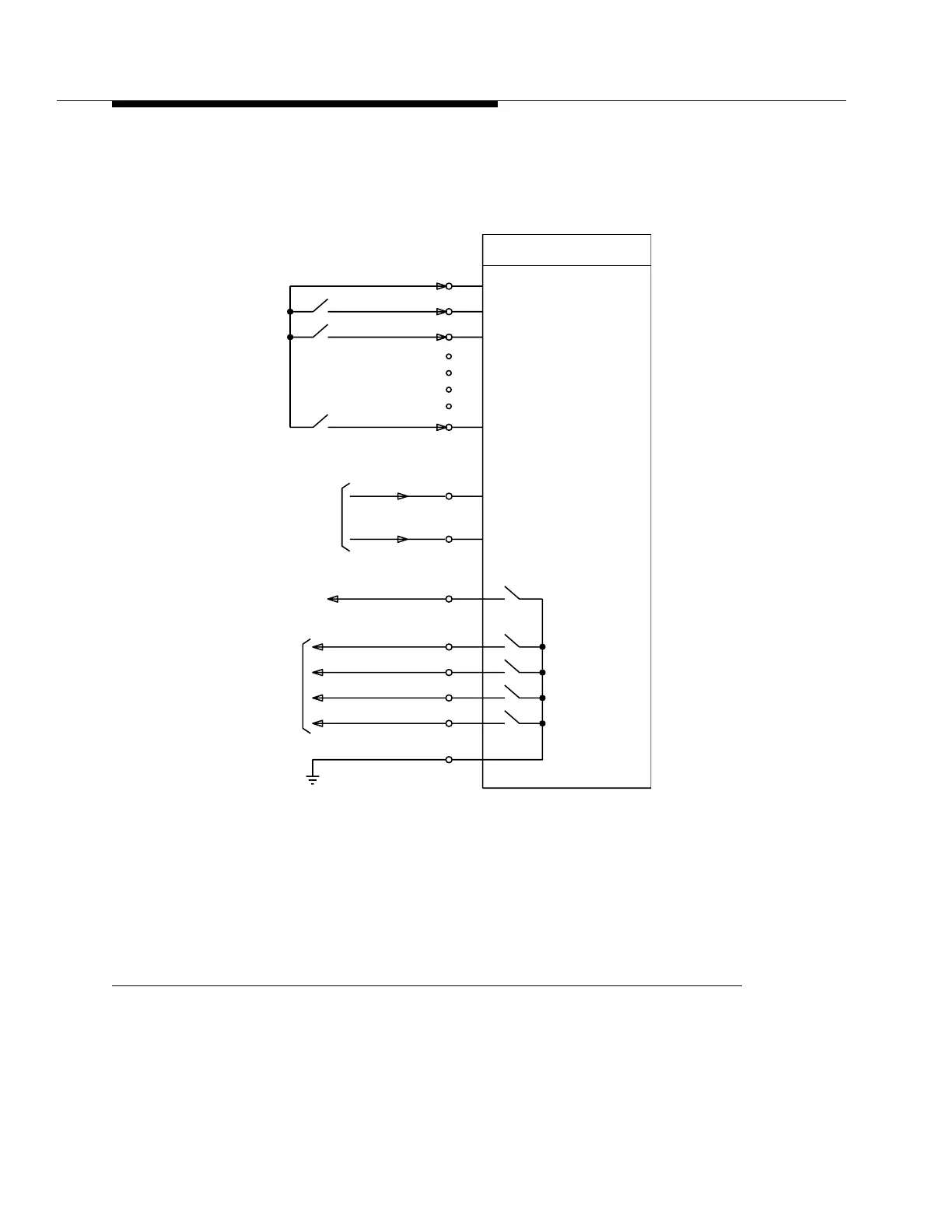

Figure 3-15. Remote Terminal Miscellaneous Discrete Functions (Releases prior to 5)
DDM-2000 OC-12 Shelf
2
3
21
22
18
Water, Fire, etc.)
High Temp, High
Inputs (Open Door,
Misc. Alarm/Status
Misc. Input #2
Misc. Input #1
Input Common
Misc. Input #14
From
External Minor
Alarm Input
J68
24
10
11
12
23
SLC
25
Power Minor
9
Pump, etc.
Generator,
Misc. Output #4
Misc. Output #3
Output Common
Unit (In Cabinet)
To 2A or 2B Fan
Misc. Output #2
To
Misc. Output #1
Output
Fan Control
(In Cabinet)
Power Shelf
Series 5
Alarm Input
