Lucent Technologies DDM-2000 OC-12 - Figure 2-8. Side Mounting Bracket Positions

Issue 5 November 2000 
363-206-208
Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: Reposition the DDM-2000 OC-12 shelf, fan shelf, and heat baffle side mounting brackets, if
necessary, according to the bay frame they are being mounted in.

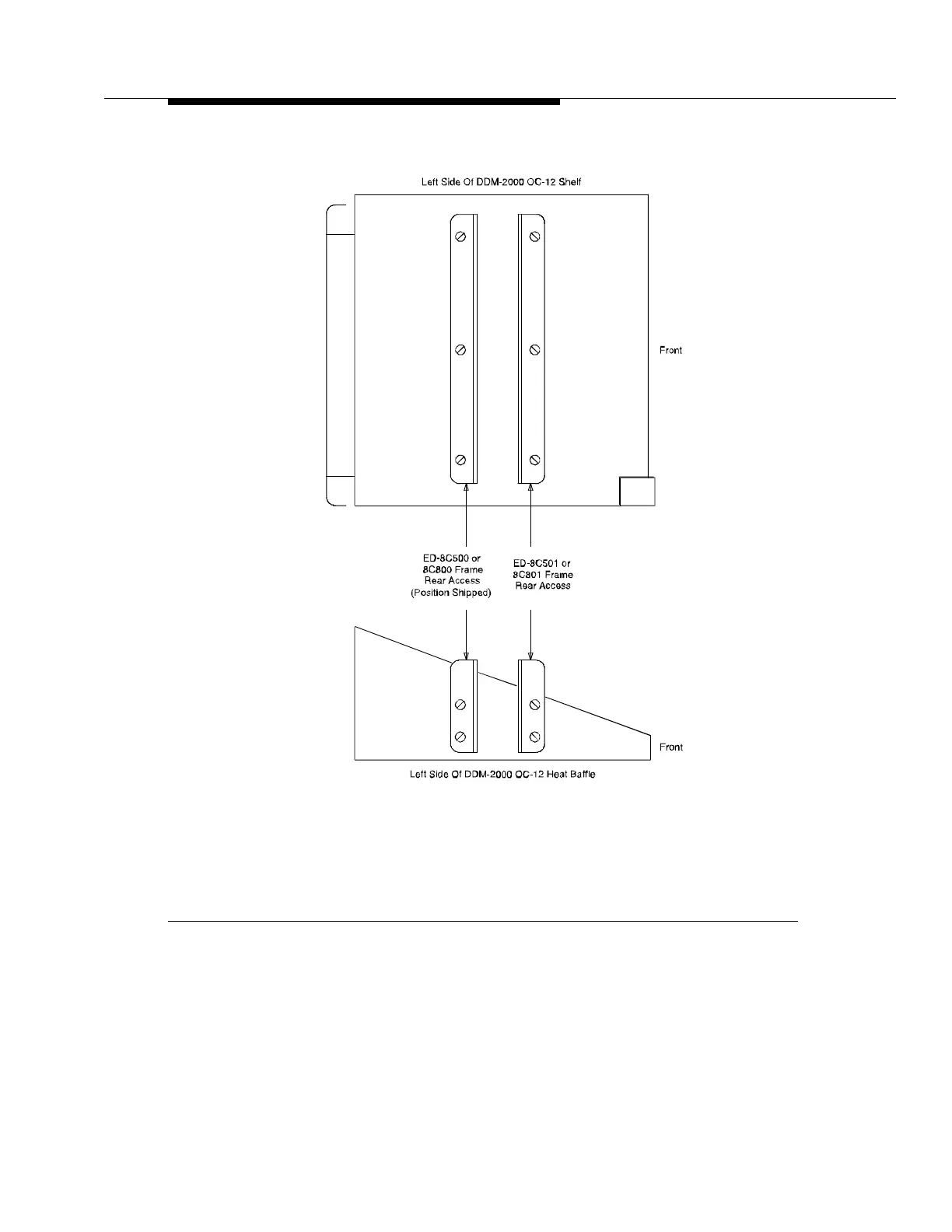

Figure 2-8. Side Mounting Bracket Positions
