Powering, Verification, and Circuit Pack Installation for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page

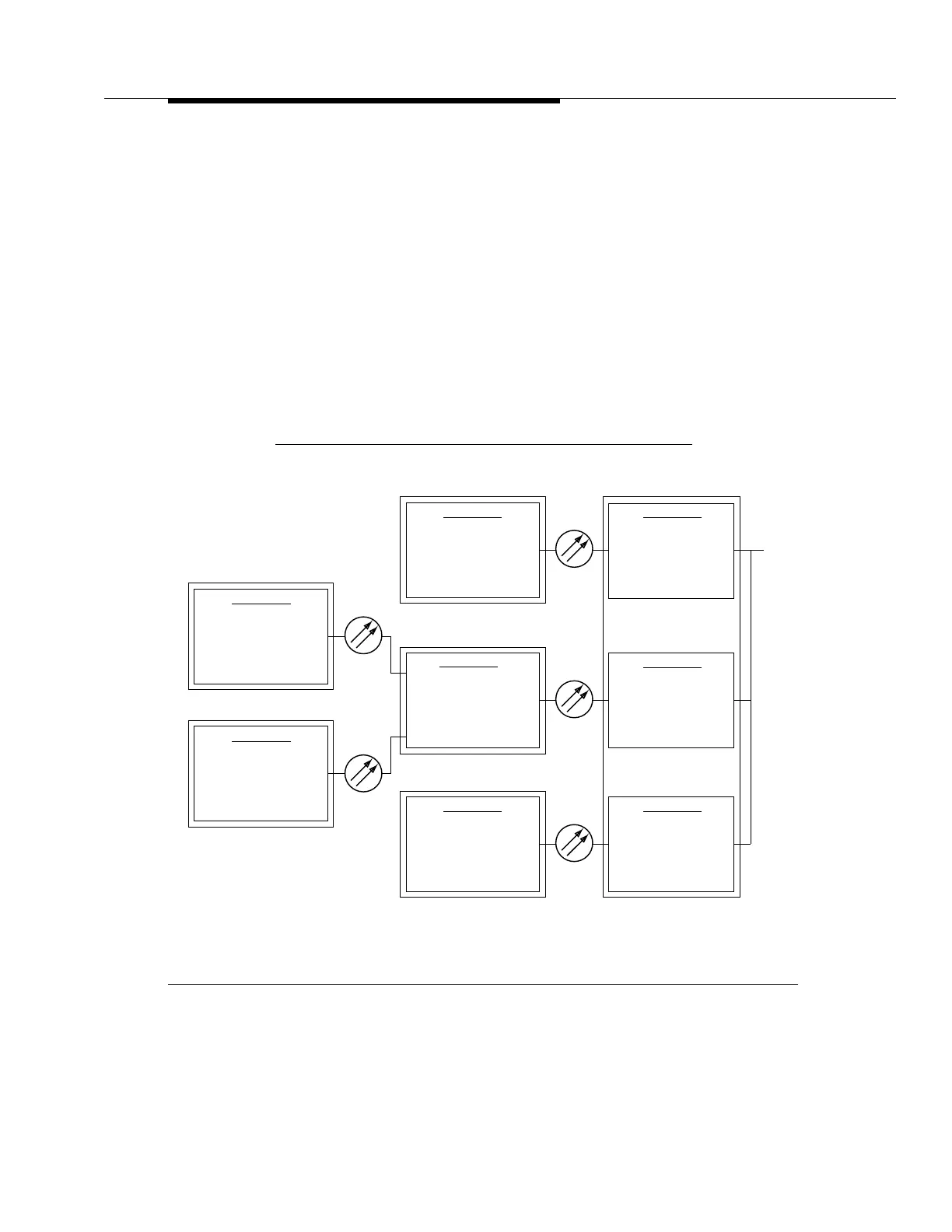

Figure 5-1. BBG5 SYSCTL Option Setting Guidelines
Examples in a CO:
-Set CO/RT switch for CO
-Set site address for site 7
-Set front and rear access data rate for 9600
-Set power minor for office minor
-Set the first shelf in the TBOS link to primary
(if applicable, set to secondary)
Example of TBOS-Related Provisioning for DDM-2000 OC-12 Applications
DDM-2000 OC-3
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 5
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
DDM-2000 OC-3
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 6
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
DDM-2000 OC-12
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 2
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
DDM-2000 OC-12
CO/RT select: RT
TBOS termination: not last
TBOS display number: 4
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
DDM-2000 OC-12
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 8
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
HUB Remote
Terminal (RT) Site
DDM-2000 OC-12
DDM-2000 OC-12
DDM-2000 OC-12
OC-3
OC-12
TBOS
intrabay
multiple
cable
Central Office (CO) Bay
CO/RT select: CO
TBOS termination: not last
TBOS display number: 1
TBOS backup function: primary
Remote TBOS enable: enabled
CO/RT select: CO
TBOS termination: not last
TBOS display number: 3
TBOS backup function: secondary
Remote TBOS enable: enabled
CO/RT select: CO
TBOS termination: last
TBOS display number: 7
TBOS backup function: normal
Remote TBOS enable: enabled
OC-3
Examples in an RT:
-Set CO/RT switch for RT
-Set site address for a site other than 7
-Set front and rear access data rate for 9600
-Set power minor for office minor
-Set TBOS Display number, one number higher than the CO shelf number it is linked to
-Set TBOS backup number for no TBOS
OC-12
OC-12
TBOS
Link
