Equipment and Front Access Cable Installation for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: Reposition the DDM-2000 OC-12 shelf, fan shelf and heat baffle side mounting brackets to the front
access position.

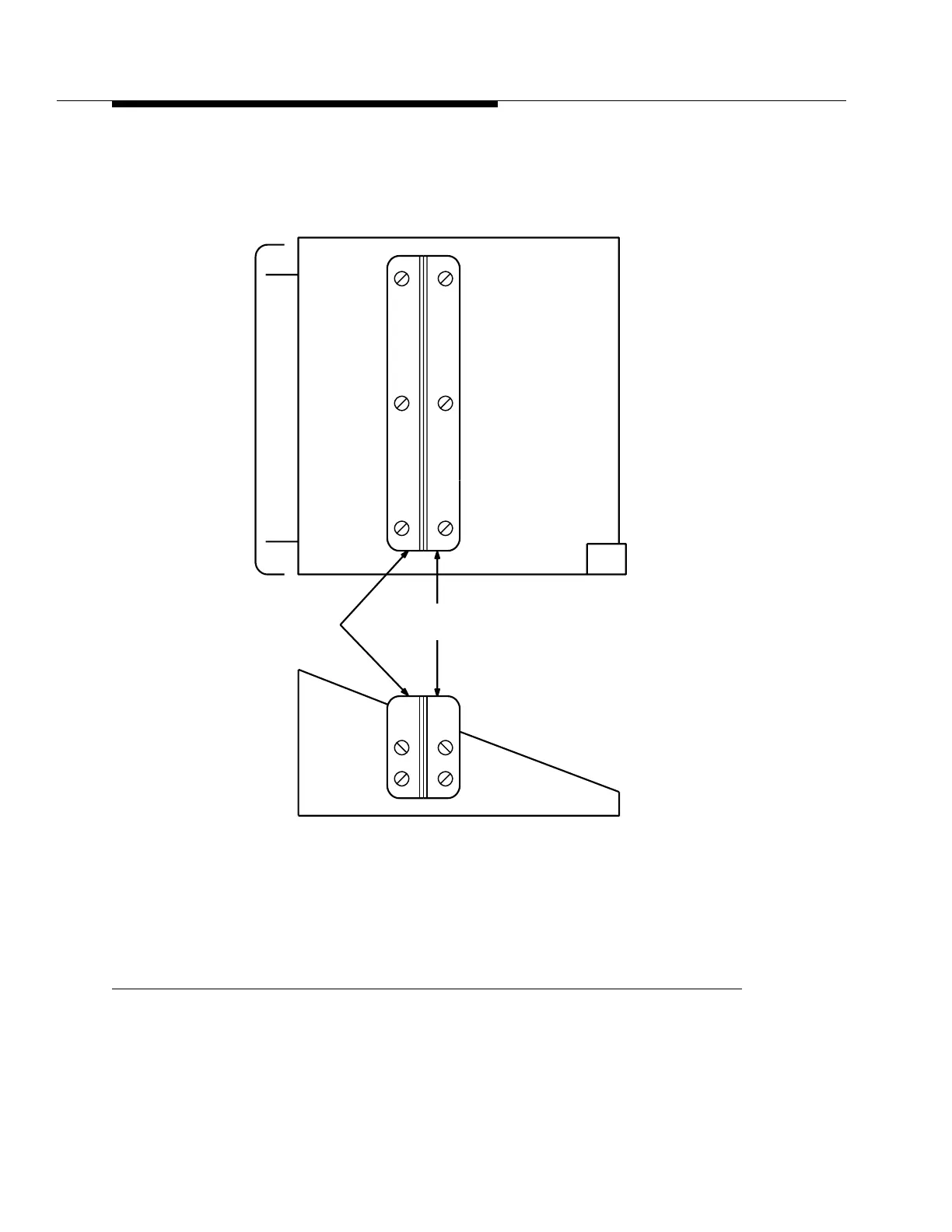

Figure 3-7. Side Mounting Bracket Positions
Front
Front Access
ED-8C500 or 8C800 Frame
Position Shipped
Front
Left Side Of DDM-2000 OC-12 Shelf
Left Side Of DDM-2000 OC-12 Heat Baffle
