Lucent Technologies DDM-2000 OC-12 - Figure 3-3. Connector Pin Outs

 Issue 5 November 2000
363-206-208
Equipment and Front Access Cable Installation for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: Terminals are numbered by looking at the connector from the wiring side.

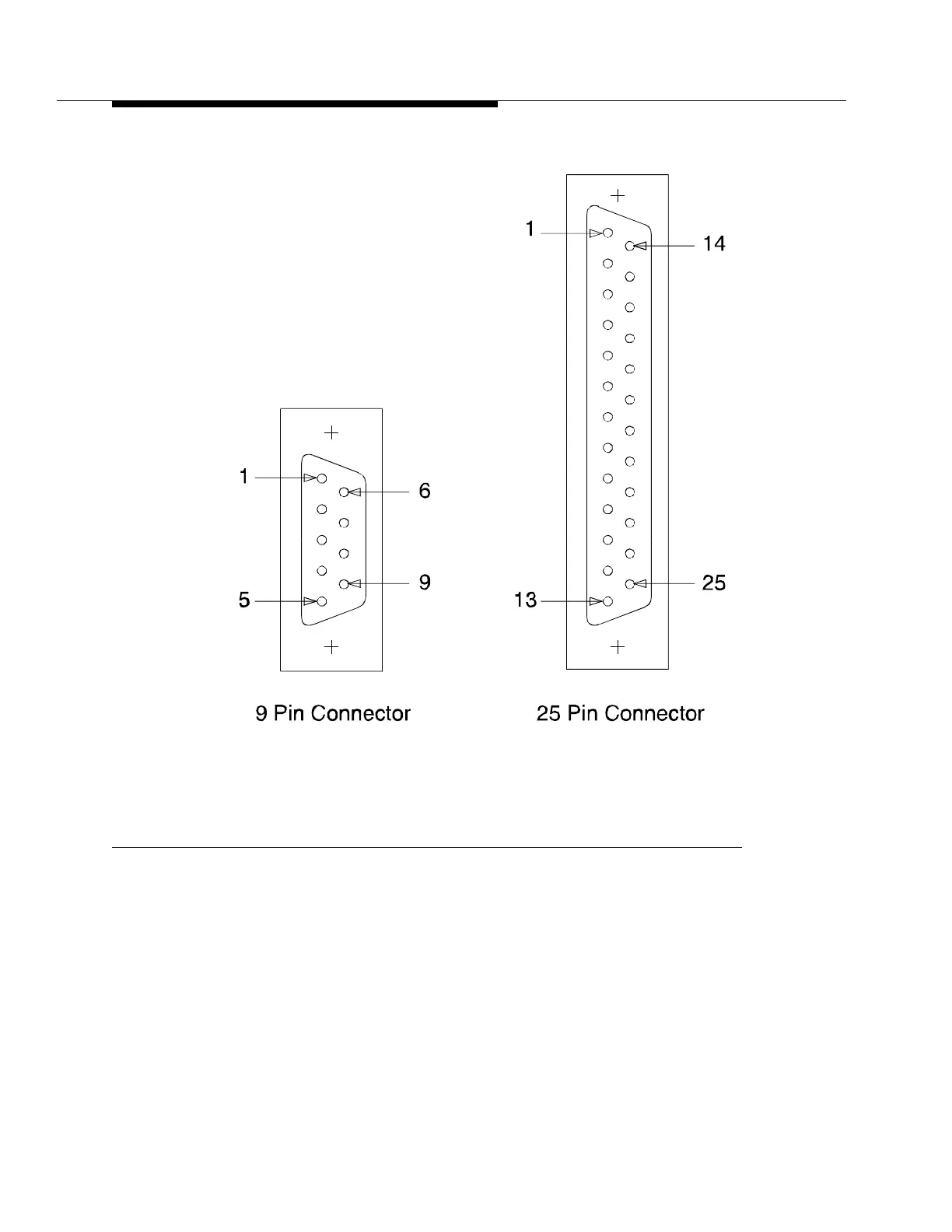

Figure 3-3. Connector Pin Outs
