Lucent Technologies DDM-2000 OC-12 - Figure 2-3. ED-8 C501 or 8 C801 Frame, Rear Access Cable Placement

 Issue 5 November 2000
363-206-208
Equipment and Rear Access Cabling for the DDM-2000 OC-12 Multiplexer
Lucent Technologies - Proprietary
See Notice on first page
Note: The cabling stacking order is shown in the figure. The numbers on the cables
indicate the shelf associated with that cable.

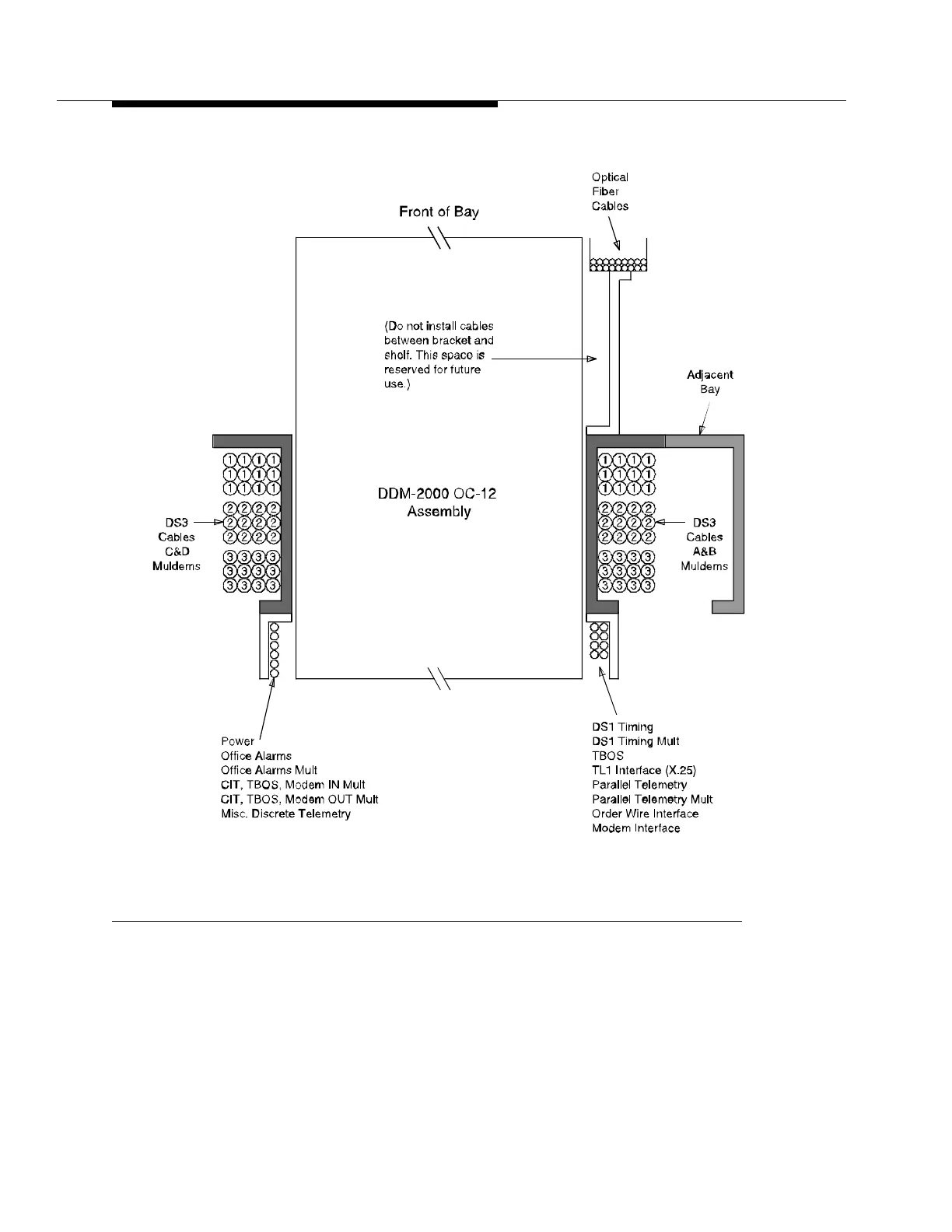

Figure 2-3. ED-8C501 or 8C801 Frame, Rear Access Cable Placement
