Lucent Technologies DDM-2000 OC-12 Installation Manual

 Issue 5 November 2000
363-206-208
DDM-2000 OC-3/OC-12 Bay Installation
Lucent Technologies - Proprietary
See Notice on first page

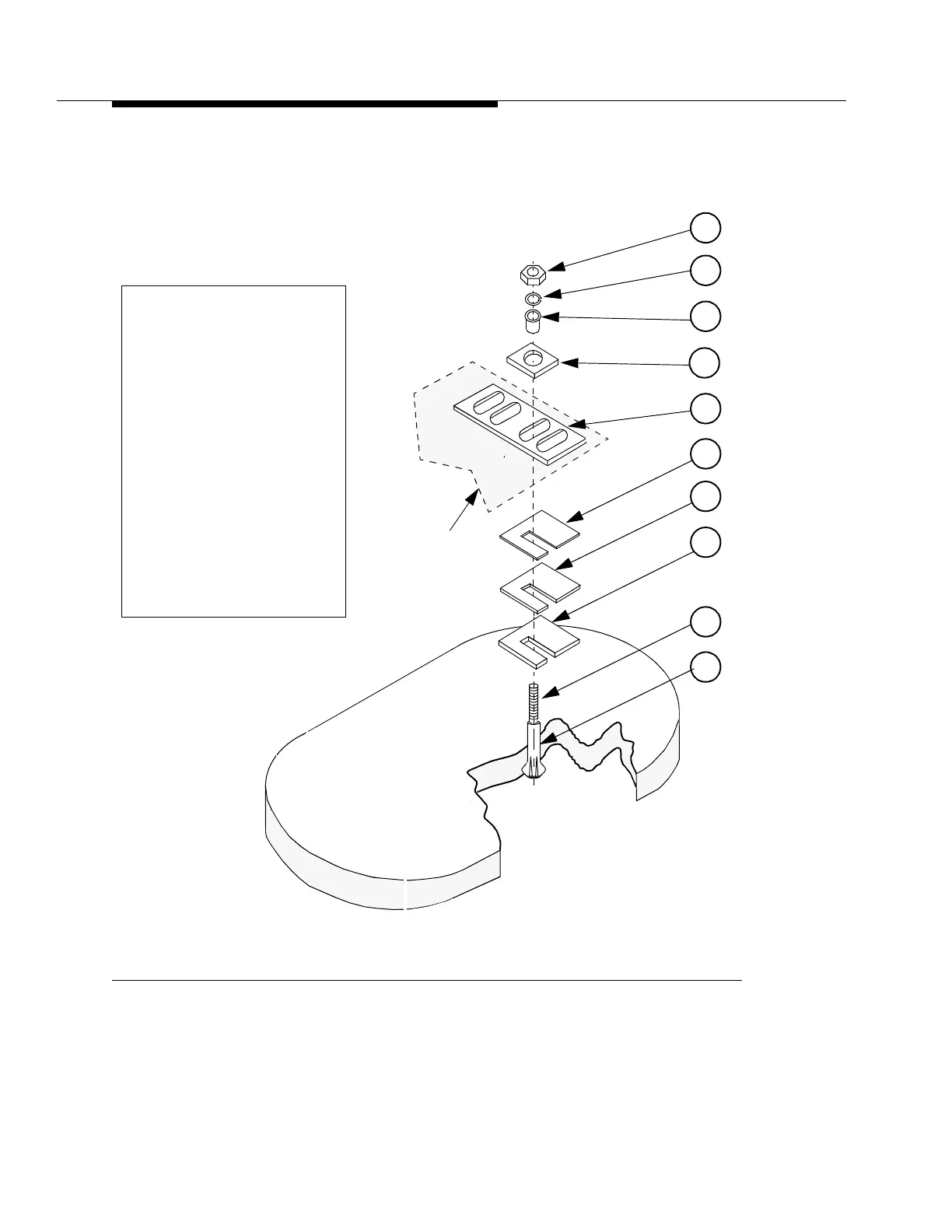

Figure 4-2. OC3/OC12 Bay Installation
10
9
7
6
5
Bottom of
1 Hex Nut 1/2-13
2 1/2-inch Washer
3
Insulating Bushing
*
4 Hold Down Washer
5 Hold Down Plate
6 0.063 Shim
7 0.125 Shim
8 0.250 Shim
9 Anchor Bolt
10 Drop-in Anchor
* If Required
Bay Frame
4
8
Not to Scale
3
2
1
