Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 709 en 3 - 43
GMK5150L
12.01.2018

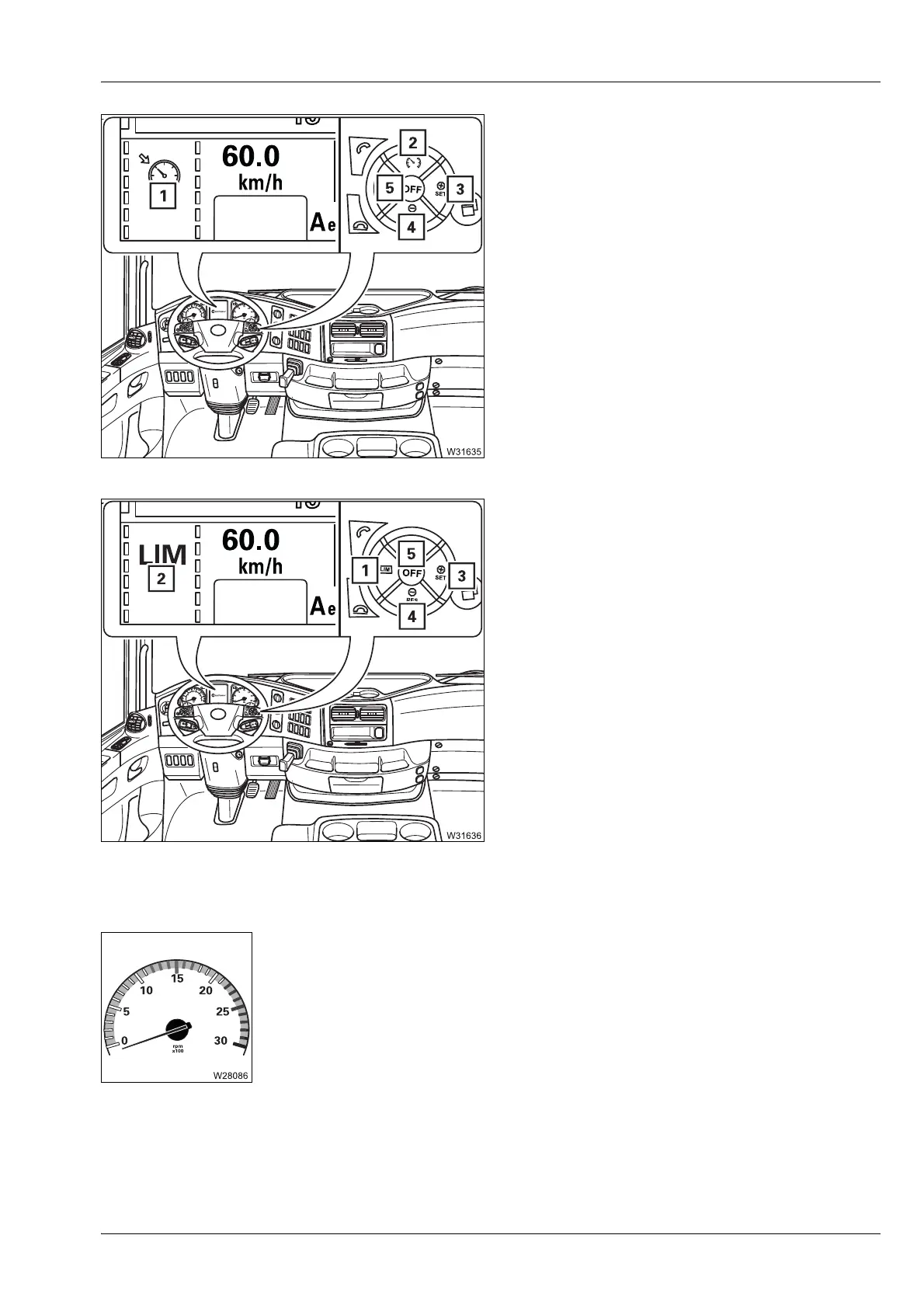

Setting cruise control
The truck crane must be driving at a speed at
least 15 km/h (9 mph).
Setting the Temposet
The truck crane must be driving at a speed at
least 15 km/h (9 mph).
Instrument panel
Tachometer
2 Select the
Cruise control menu –
symbol (1) is grey
3 Switches on or increases the speed –
symbol (1) is white
4 Switches on or reduces the speed
5 switch off
à p. 5 - 38
1 Select Temposet – symbol (2) is grey
3 Switches on or increases the speed
limit – symbol (2) is white
4 Switch off or reduce the speed limit
5 Switch
Temposet off
à p. 5 - 40
Display, engine speed in rpm; Ã p. 5 - 37
