Manitowoc GROVE GMK5150L User Manual

Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 709 en 3 - 51
GMK5150L
12.01.2018

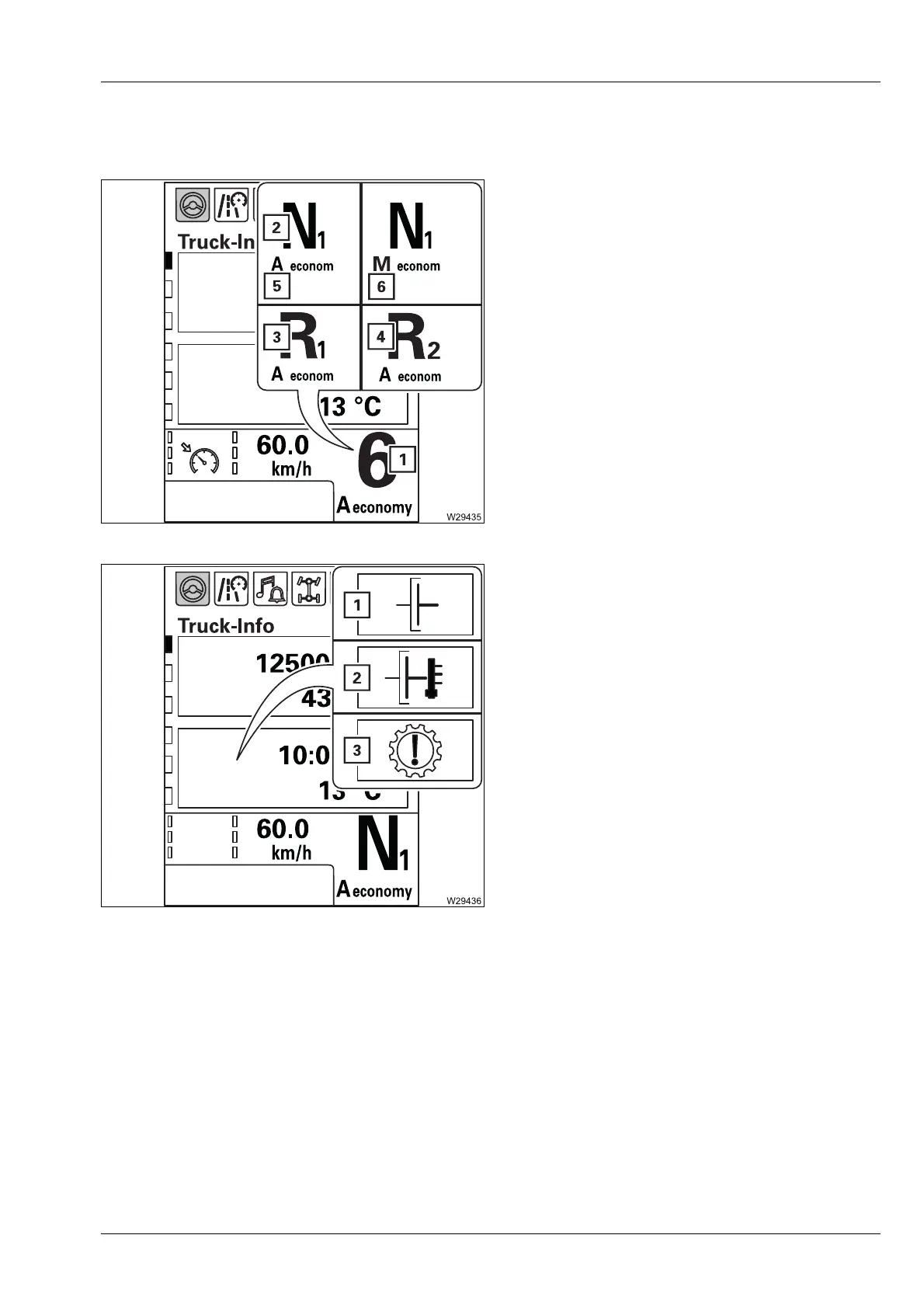

Display,
driving mode
Transmission display
Error messages display
1 Currently engaged gear – forwards
(1 to 16), for example 6
2 Neutral position switched on
3 Gear currently engaged – 1st reverse gear
4 Gear currently engaged – 2nd reverse
gear
5
Automatic operating mode
6
Manual operating mode
1 Clutch heavily loaded
2 Clutch malfunction
3 Gear shift malfunction
