Operating elements for driving
3.2 Short description of the operating elements
3 - 50 3 302 709 en Operating manual
GMK5150L
12.01.2018

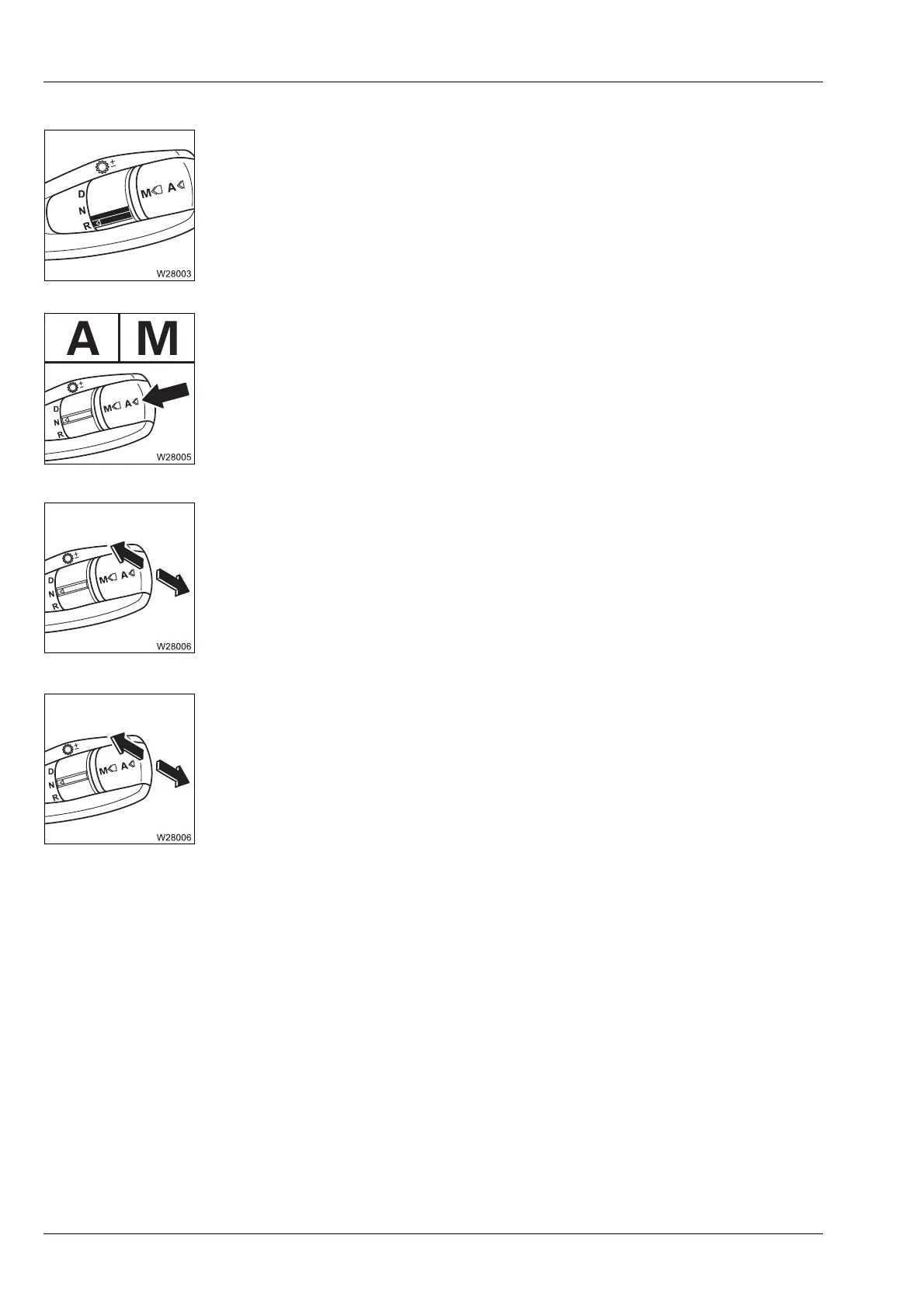

Gearshift lever
– Position R: When at a standstill – Select reverse starting gear
When driving in reverse – No gear change
When driving forwards – Select neutral
The truck crane may be stationary or driving.
– Press in once: Change over between
automatic and manual
operating mode – without change of gear
à p. 5 - 29
The truck crane must be stationary.
– Push forwards once: Shift up starting gear – 1 gear
– Push to the rear once: Shift down starting gear – 1 gear
If the truck crane is in motion.
– Push forwards once: Upshift – 1 gear
Manual operating mode on
– Push to the rear once: Shift down – 1 gear
Manual operating mode on
à p. 5 - 32
