Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 709 en 3 - 77
GMK5150L
12.01.2018
3.2.24 Access ladders and ladders
Different ladders and handles are on the truck crane depending on the
version.

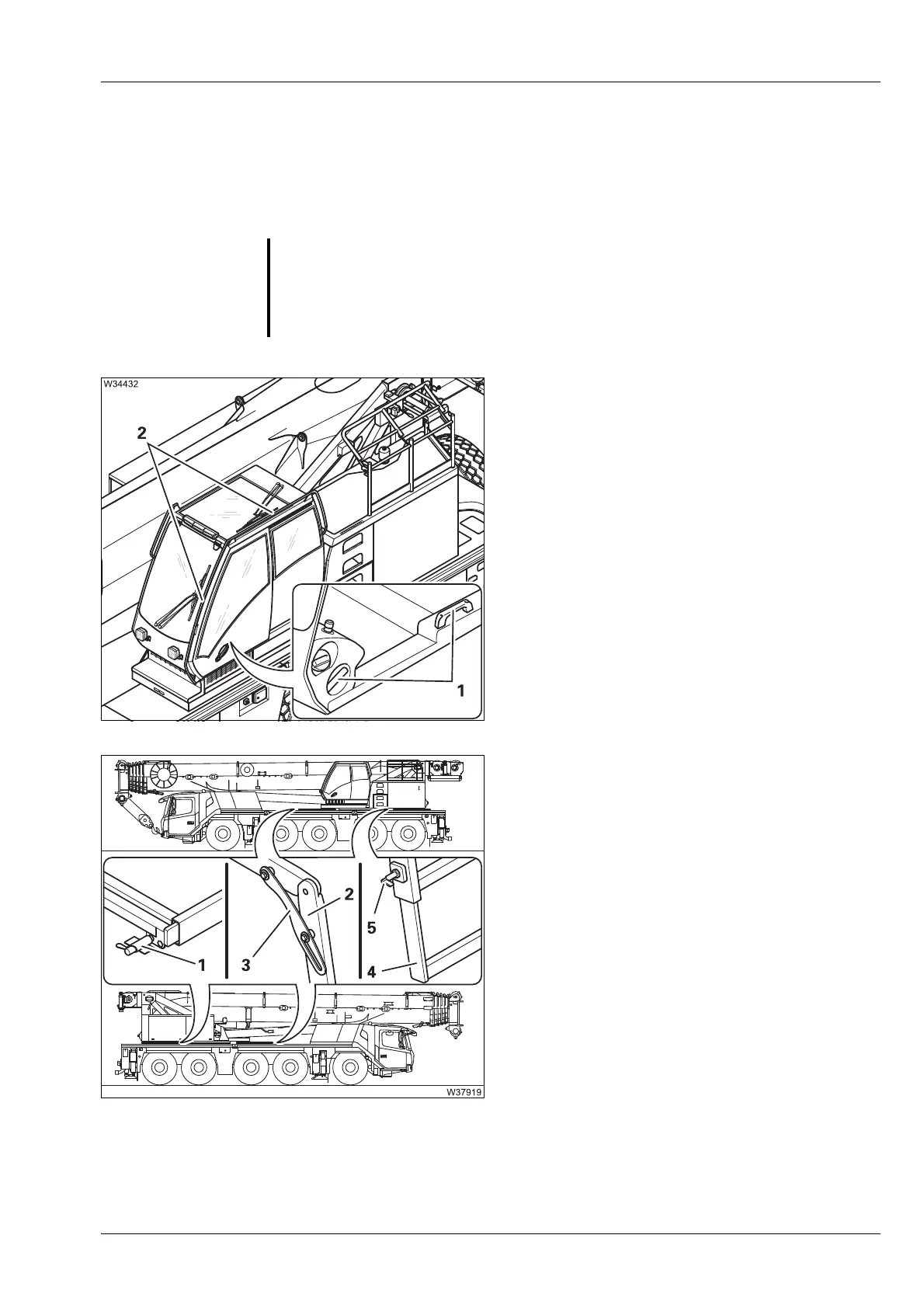

Handles
– When the crane cab door is open, you can
reach the handle (1).
– The handle (2) is located on the outside of
the crane cab.
Swing-out ladders
– Folding out
• Release the spring latch (1).
• Swing the ladder (2) outwards and fold
downwards – locking bar (3) engages.
• If need be – engage the spring latch (5) and
pull out another access ladder (4).
s
G
Hazard due to unsecured ladders
Always secure the ladders before driving. The prevents the ladders falling
down or folding out whilst driving and thus endangering other vehicles.
