Operating elements for driving
3.2 Short description of the operating elements
3 - 78 3 302 709 en Operating manual
GMK5150L
12.01.2018

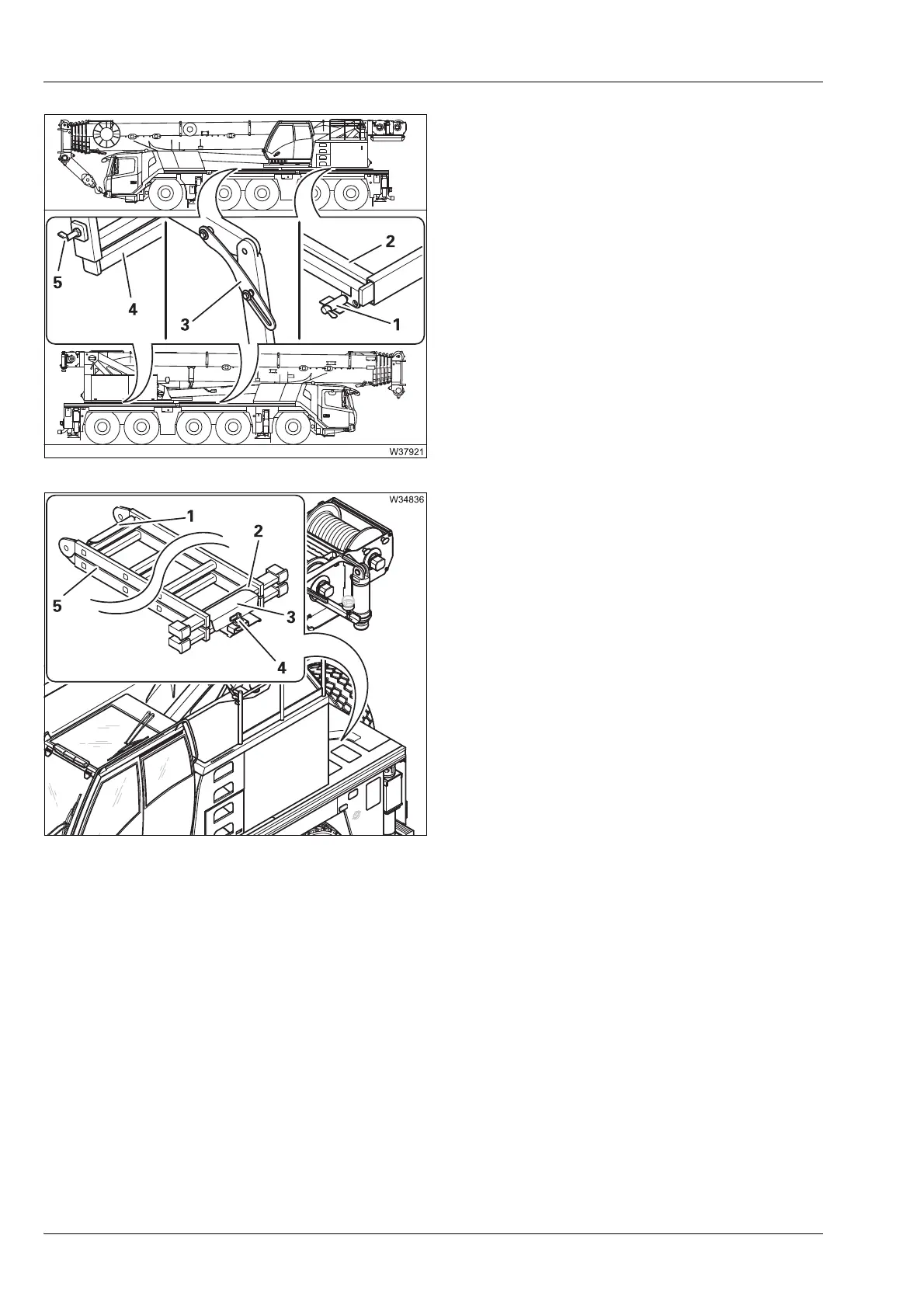

– Folding in
• Release the spring latch (5) and push in the
access ladder (4).
• Lift the locking bar (3) for releasing and
fold the ladder (2) upwards.
• Swing the ladder (2) on the carrier.
• Secure the ladder (2) with the spring
latch (1).
Folding ladder – shelf on the rear of carrier
– For the use
Ladder (5) – to erect and fold out.
• Taking off the clamp (3) and taking out
the ladder.
• Plug the clamp (3) into the mounting at
the carrier.
• Push the clamp to the front and secure it
with the locking bar (4).
– For driving/crane operation
• Fold together the ladder (5) and push
under the clamp (1).
• Plug the clamp (3) into the mounting at
the carrier.
• Push the clamp over the rungs (2) and
secure with the locking bar (4).
