Malfunctions in driving mode
8.5 Emergency operation and breakdown assistance
Operating manual 3 302 709 en 8 - 41
GMK5150L
12.01.2018

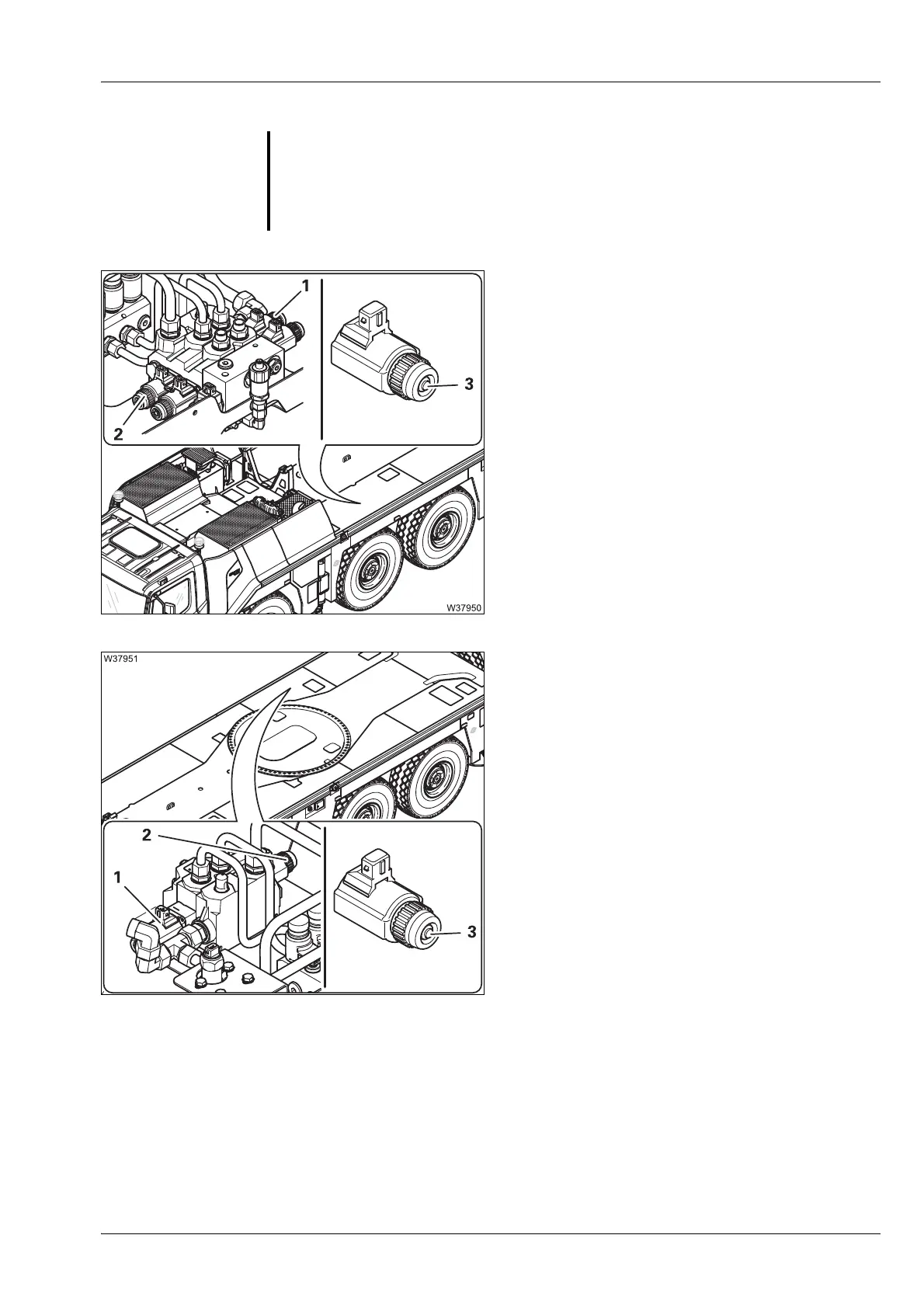

Steering of the 3rd axle line
The valves are labelled.
The valves are actuated by pressing the valves
in the middle (3) with a blunt object.
• Actuate the valve for the required steering
direction until the 3rd axle line is in the
straight running position.
Steering of the 4th axle line
The valves are labelled.
The valves are actuated by pressing the valves
in the middle (3) with a blunt object.
• Actuate the valve for the required steering
direction until the 4th axle line is in the
straight running position.
s
G
Risk of crushing due to turning wheels
Ensure that there are no persons near the wheels being steered before
steering an axle line with emergency operation.
1 Y4903 – Steer to the left
2 Y4904 – Steer to the right
1 Y4915 – Steer to the left
2 Y4916 – Steer to the right
