Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 9 - 21
GMK5150L

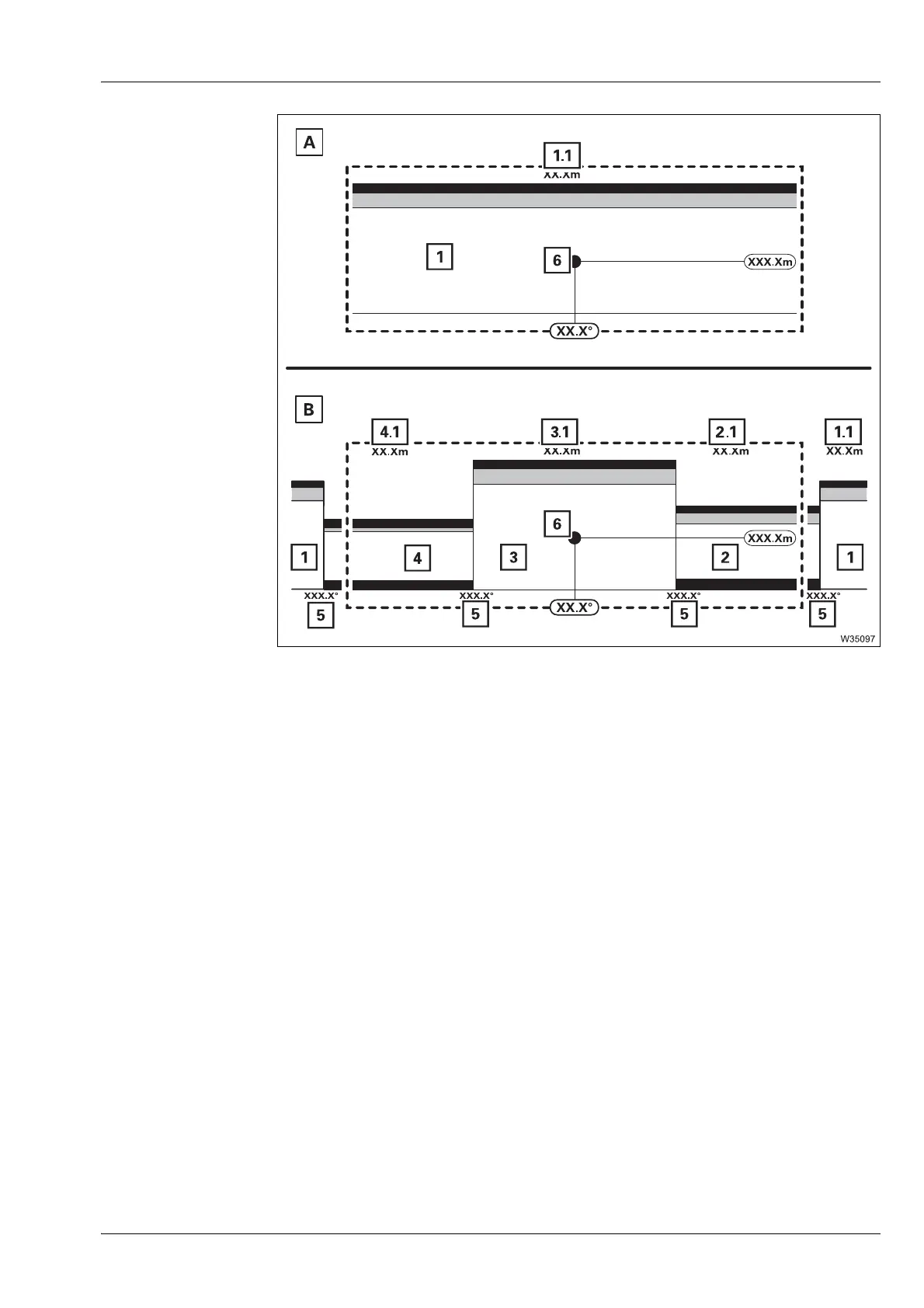

Display Slewing
ranges/working
radii
A For the Standard slewing range type
B For the
MAXbase slewing range type
Display of current slewing range divisions
à p. 9 - 133
1 Slewing range 1
à p. 9 - 133
2 Slewing range 2
à p. 9 - 133
3 Slewing range 3
à p. 9 - 133
4 Slewing range 4
à p. 9 - 133
5 Display of current slewing range limits
à p. 9 - 133
6 Current position display
à p. 9 - 134
Maximum permissible working radius display
à p. 9 - 134
1.1 In slewing range 1
à p. 9 - 134
2.1 In slewing range 2
à p. 9 - 134
3.1 In slewing range 3
à p. 9 - 134
4.1 In slewing range 4
à p. 9 - 134
