Manitowoc GROVE GMK5150L User Manual

Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 9 - 45
GMK5150L

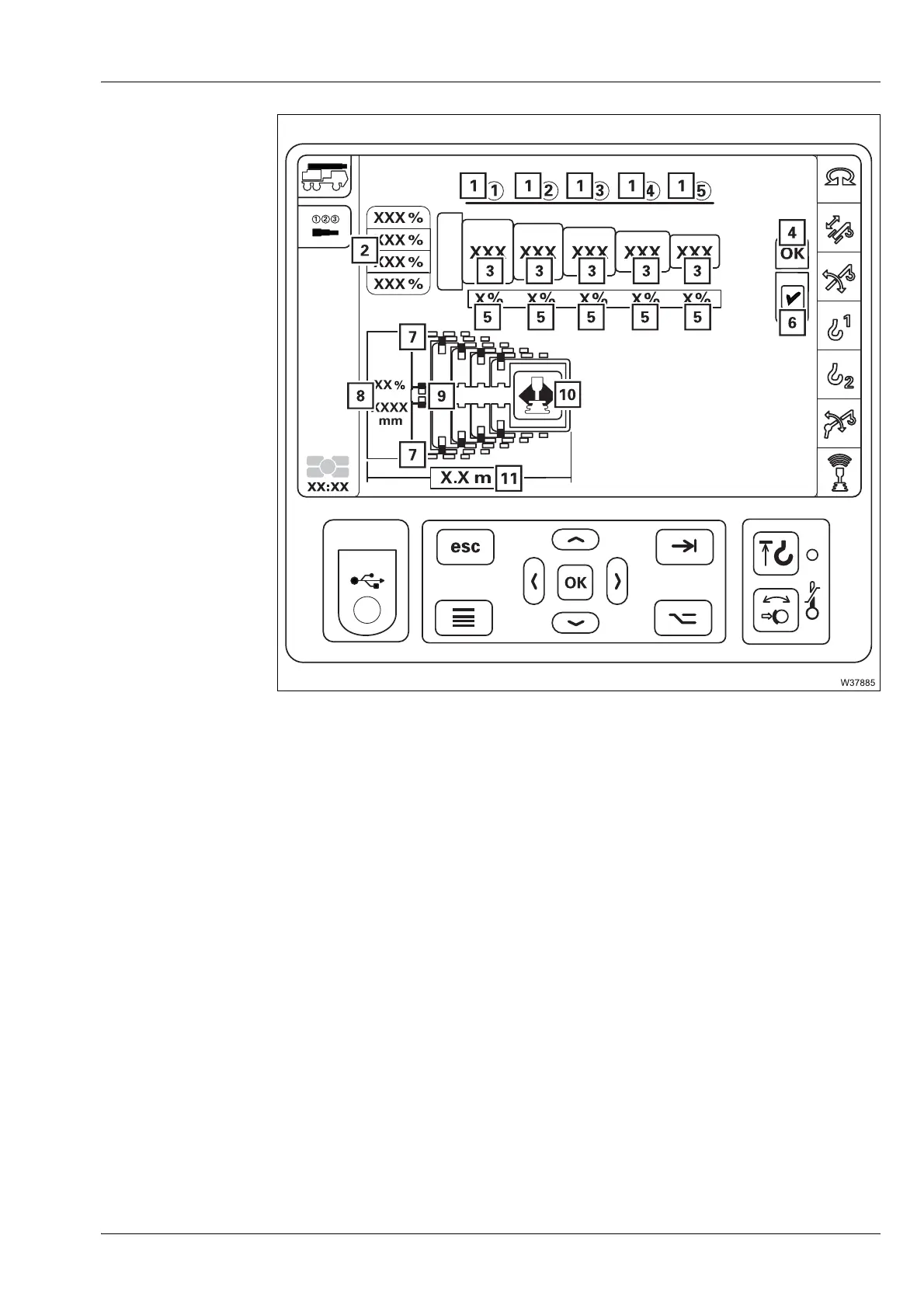

Telescoping semi-
automation menu
s
1 Telescopic sections display à p. 9 - 124
2 Pre-selection for all telescopic sections
à p. 9 - 124
3 Pre-selection individual telescopic sections
à p. 9 - 125
4 Confirm pre-selection
à p. 9 - 125
5 Current telescope status display
à p. 9 - 124
6 Telescoping permitted display
Telescoping not permitted display
à p. 9 - 125
7 Locking status telescopic section display
à p. 9 - 123
8 Telescoping cylinder length display
à p. 9 - 124
9 Locking status telescoping cylinder display
à p. 9 - 123
10 Teleautomation direction display
à p. 9 - 125
11 Main boom length display
à p. 9 - 124
